Variscite i.MX6/7 Series
VAR-SOM-SOLO/DUAL
작성자 관리자
날짜 2025-06-11 15:47:00
NXP/Freescale iMX6
- CPU Name : NXP/Freescale iMX6
- CPU Type : 1GHz Single/Dual Cortex™-A9
- Graphics Acceleration : Vivante GC 880 + Vivante GC 320
- Video Encode / Decode : 1080p30 H.264 Decode, 1080p30 H.264 Encode
- Ethernet : 10/100/1000 Mbps Ethernet
- USB : USB 2.0 : 1x Host, 1x OTG
SoM
Description
VAR-SOM-SOLO/DUAL은 i.MX6 1.0GHz 싱글 및 듀얼 라이트 Cortex-A9 레벨을 갖춘 경제적인 SoM(System-on-Module)입니다. 효율적인 통합 솔루션을 지향하여 시장의 변화에 발 맞춰 광범위한 임베디드 제품의 경쟁 우위를 점하고 있습니다. VAR-SOM-SOLO는 VAR-SOM-MX6의 모든 이점을 제공하고, 보다 작은 크기와 저렴한 가격대를 제공합니다.

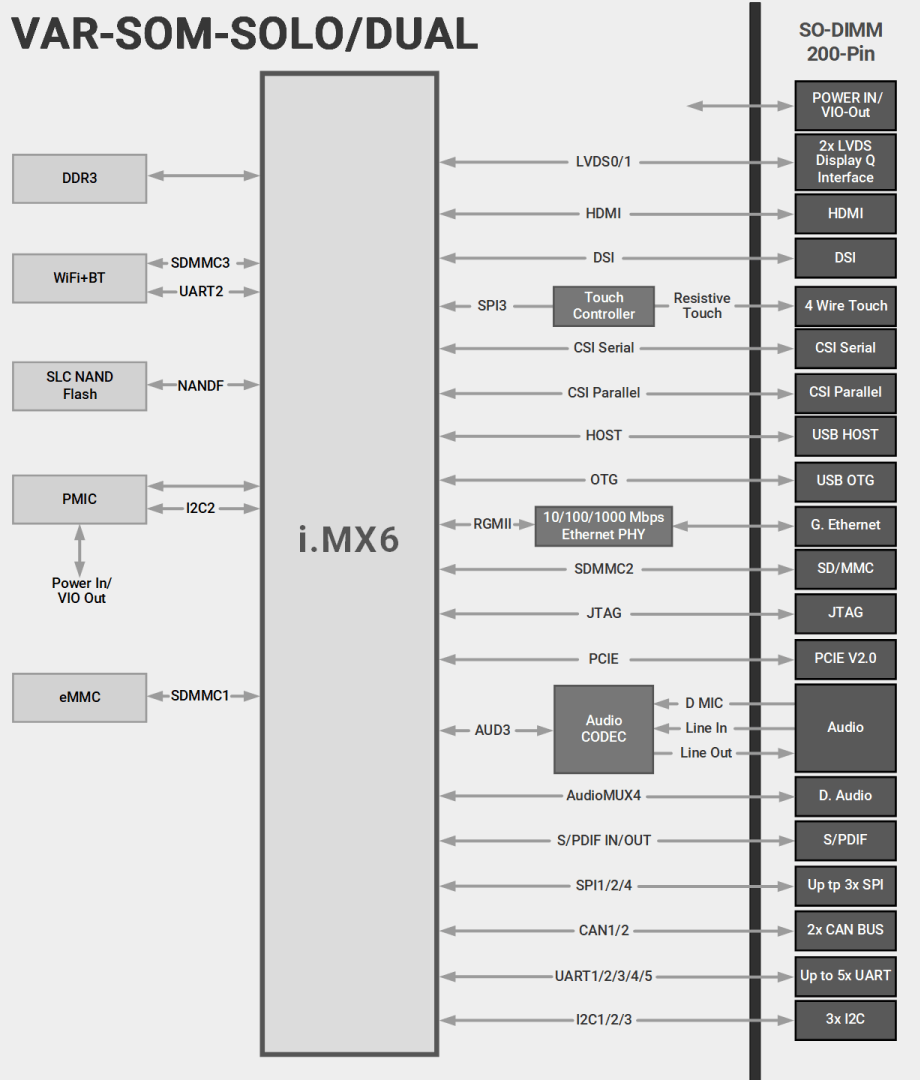

Block Diagram
Ordering Info
| VAR-SOM-[SOLO / DUAL]_[xxxx]C_[xxxx]R_[xxx]N_[x]G_[AC]_[EC]_[TP]_[WB[D]]_[x]T_LO | |
| [SOLO / DUAL] | CPU type: SOLO : i.MX6 SOLO, DUAL : i.MX6 Dual Lite |
| [xxxx]C: | Clock speed: 1000MHz : 1000C, 800MHz : 800C(Industrial) |
| [xxx]R: | RAM size: 256MB : 256R, 512MB : 512R, 1024MB : 1024R |
| [xxx]N: | NAND size: 128MB : 128N, 256MB : 256N, 512MB : 512N |
| [x]G: | eMMC size: 0GB: 0G, 8GB : 8G, 16GB : 16G, 32 GB : 32G, 64 GB : 64G |
| [EC]: | 10/100/1000Mbps Ethernet PHY |
| [AC]: | Audio Codec |
| [TP]: | 4-wire Touch Panel. |
| Note: Capacitive touch is natively supported through I2C in the base configuration | |
| [WB[D]] | WB: Built-in certified Wi-Fi 802.11 b/g/n + Bluetooth 5.1 + CSA2 support/BLE (CT/ET only) |
| WBD: Built-in certified Wi-Fi 802.11 a/b/g/n with MIMO + Bluetooth 5.1 + CSA2 support/BLE | |
| [x]T: | C : 0 to 70°C, E : -20 to 70°C, I : -40 to 85°C |
| ex) VAR-SOM-SOLO_1000C_1024R_512N_8G_AC_EC_TP_WB_CT | |

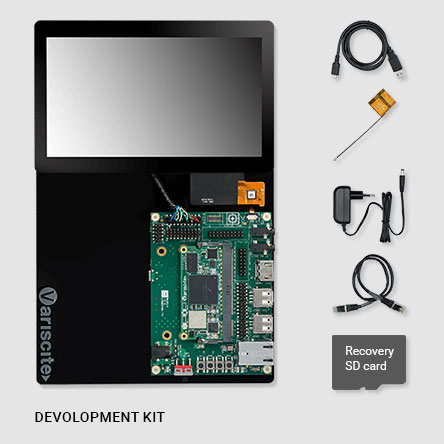

Evaluation Kits
Components
|
|
∙ Debug Cable ∙ Antenna ∙ Boot/Rescue SD Card ∙ Display & Touch Panel ∙ Ethernet Cable ∙ 5V Power Supply ∙ Carrier Board Design Package |

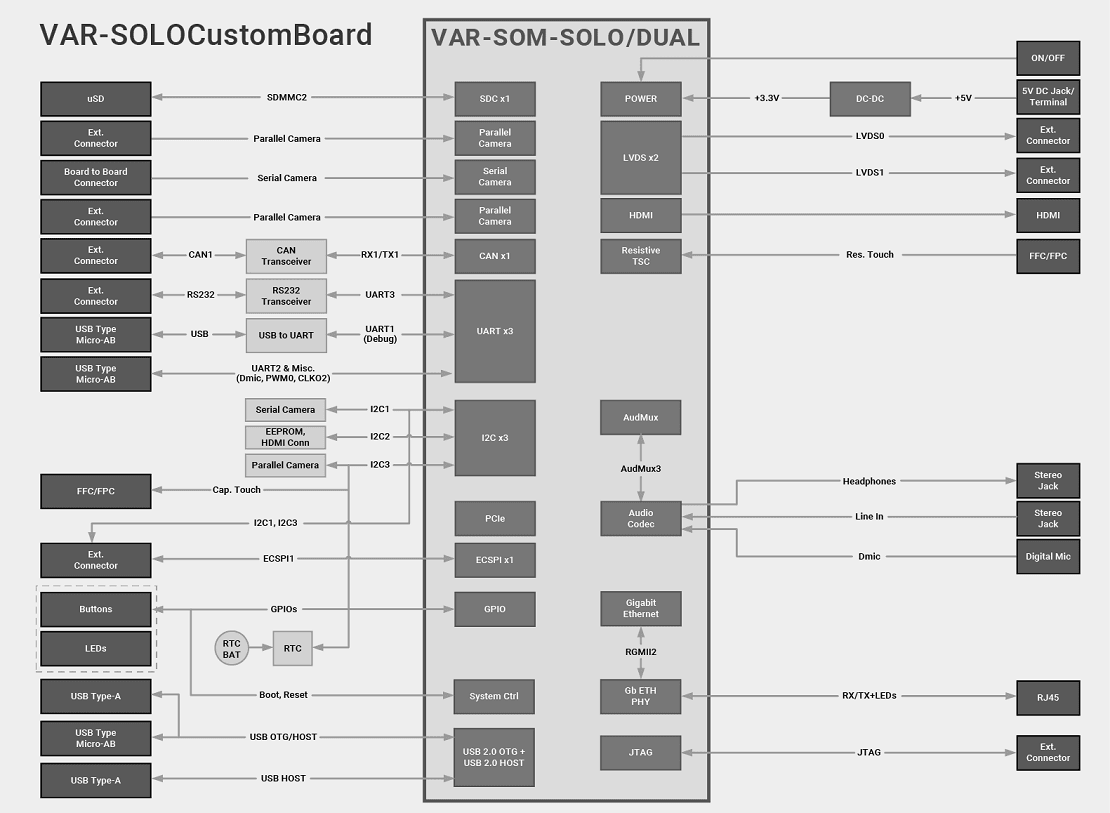

Block Diagram
Ordering Info
| VAR-[XXX]-[SOLO/DUAL]_[x]O | |
| STK/DVK | STK: Starter kit |
| DVK: Development kit | |
| [x]O | L: Linux, A: Android |
| ex) VAR-DVK-SOLO_LO |
