i.MX8 Camera Board

• Sensor : AR1335 CMOS
• Resolution : 13MP 4208×3120

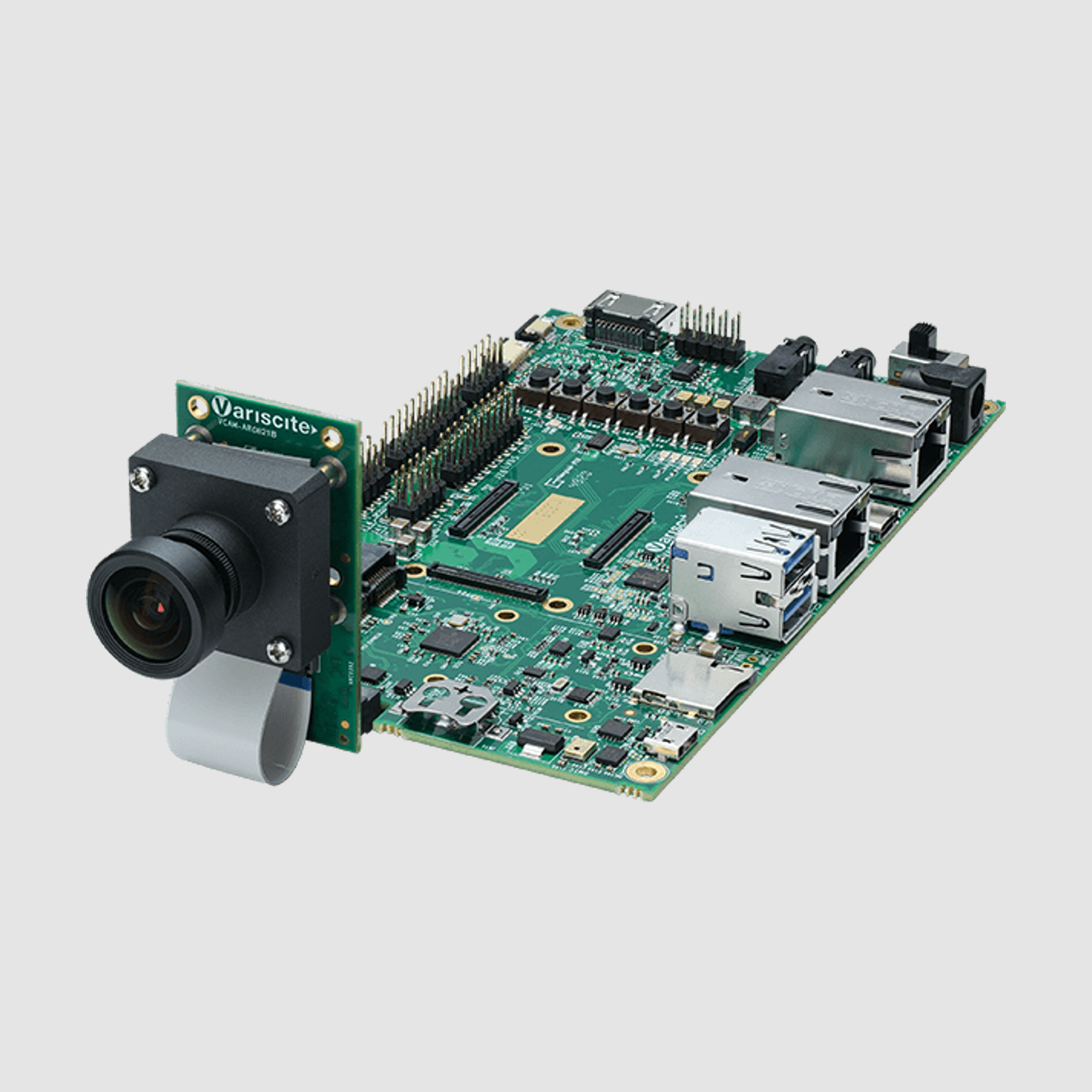

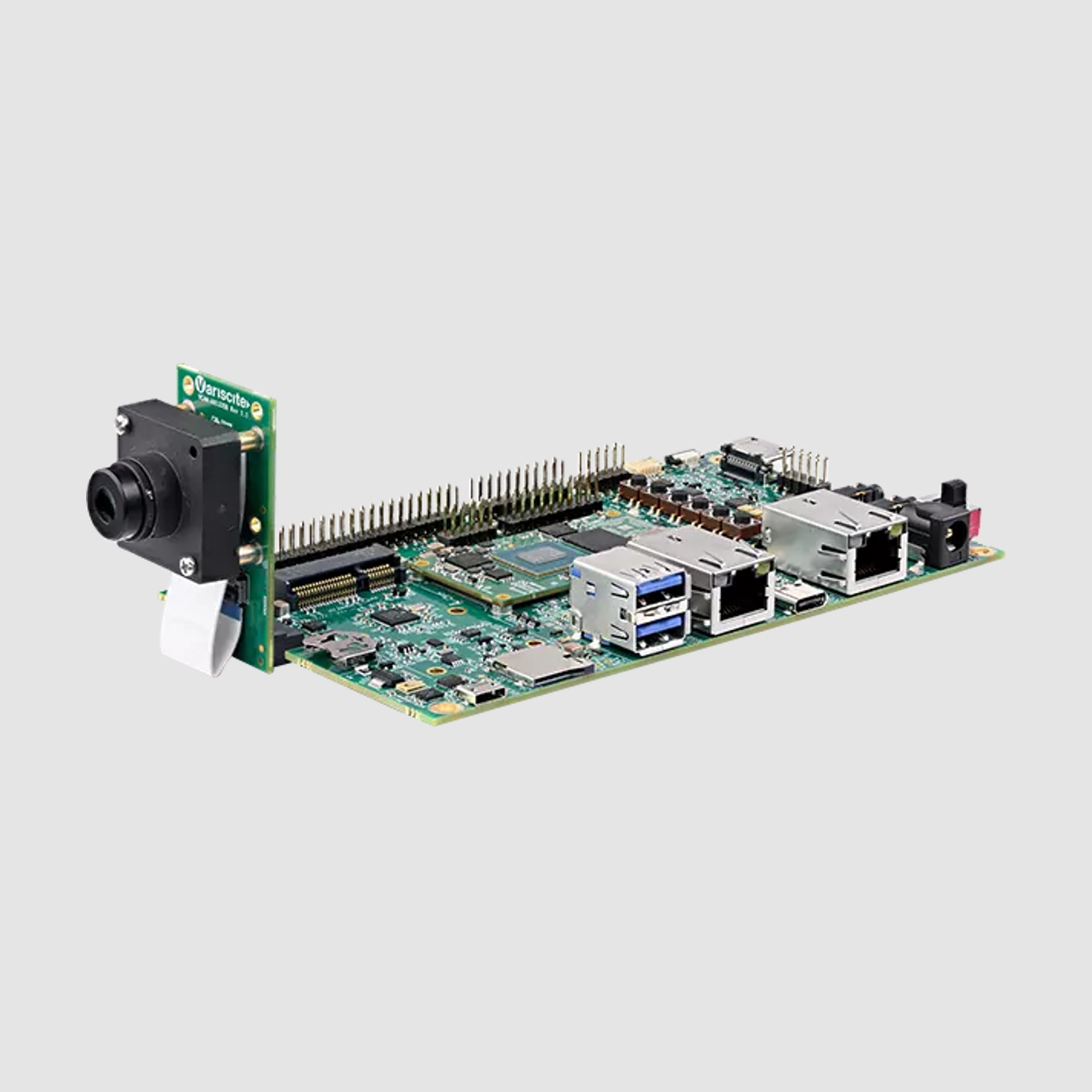

i.MX 8M Plus Camera

• Sensor : AR0821 CMOS
• Resolution : 8 MP 3840 x 2160

i.MX8M Plus Camera

• Sensor : AR0521 CMOS
• Resolution : 5 MP 2560 × 1920

Camera Board

• Sensor : 1x Omnivision OV5640 CMOS
• Resolution : 5MP / 1080P MIPI-CSI2

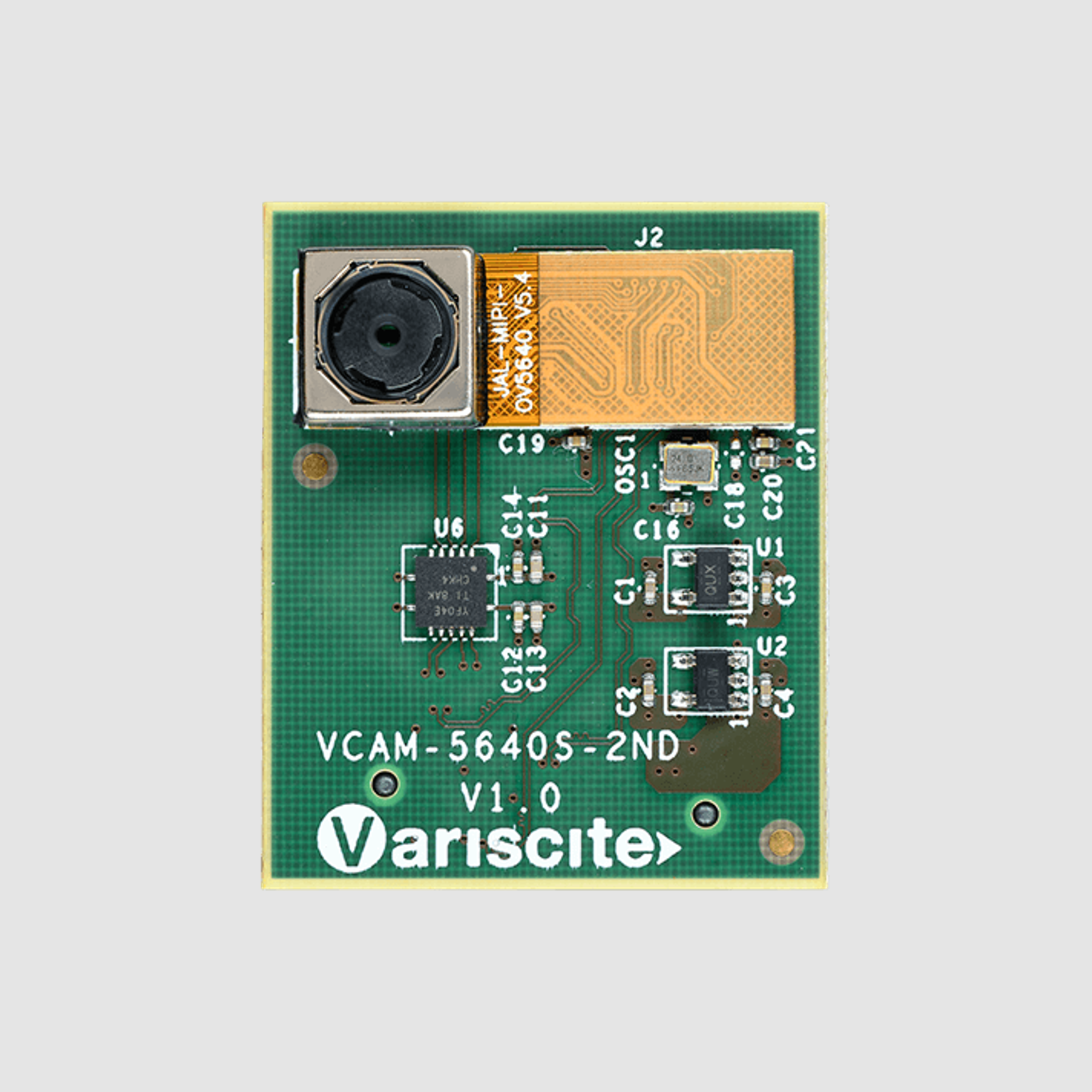

Camera Board

• Sensor : 1x Omnivision OV5640 CMOS
• Resolution : 5MP / 1080P MIPI-CSI2

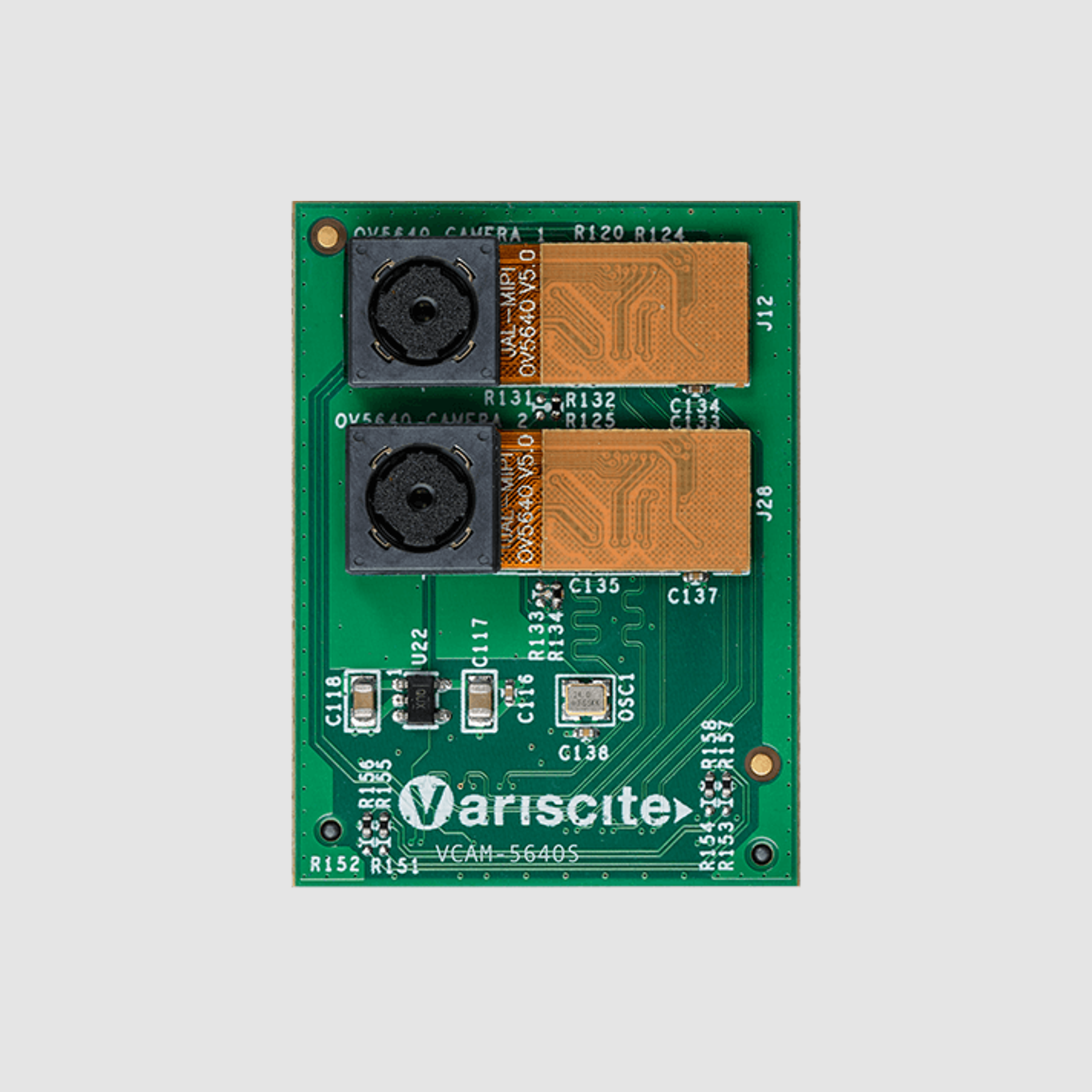

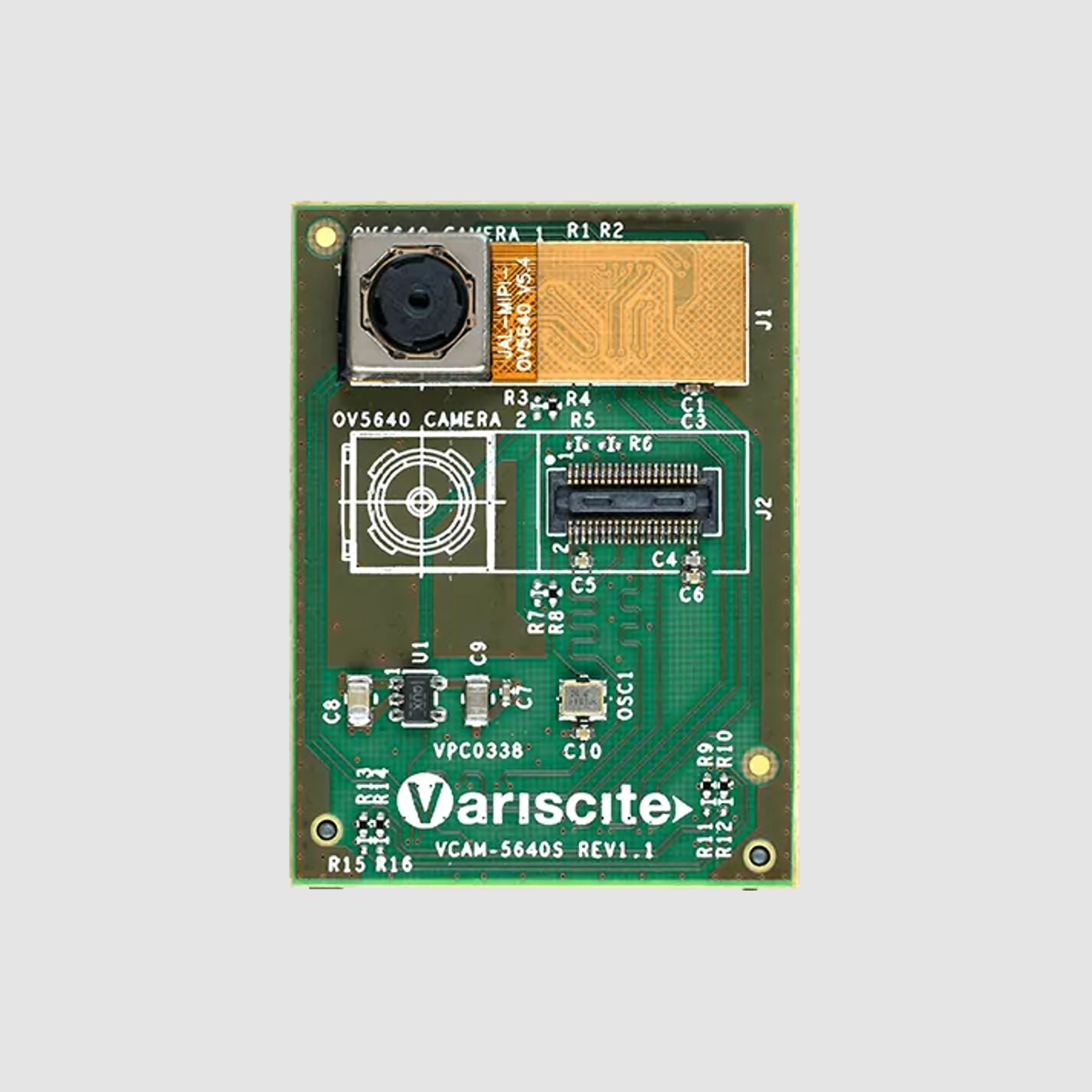

Camera Board

• Sensor : 2x Omnivision OV5640 CMOS
• Resolution : 5MP / 1080P MIPI-CSI2

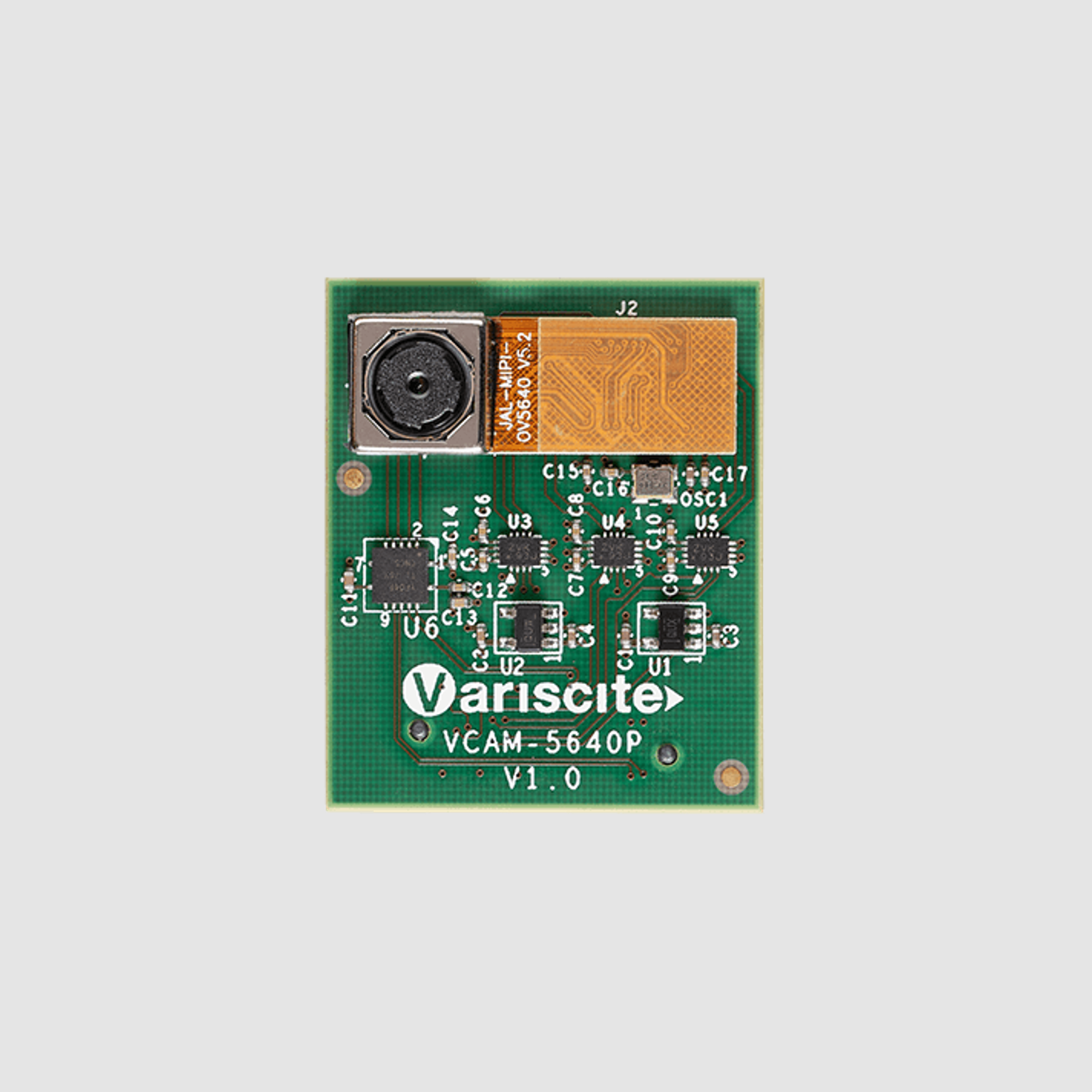

Parallel Camera Board

• Sensor : OV5640 CMOS
• Resolution : 5MP / 1080P parallel-CSI

i.MX6 Camera Board

• Sensor : Omnivision OV5640 (CSI)
• Resolution : 5MP / 1080p

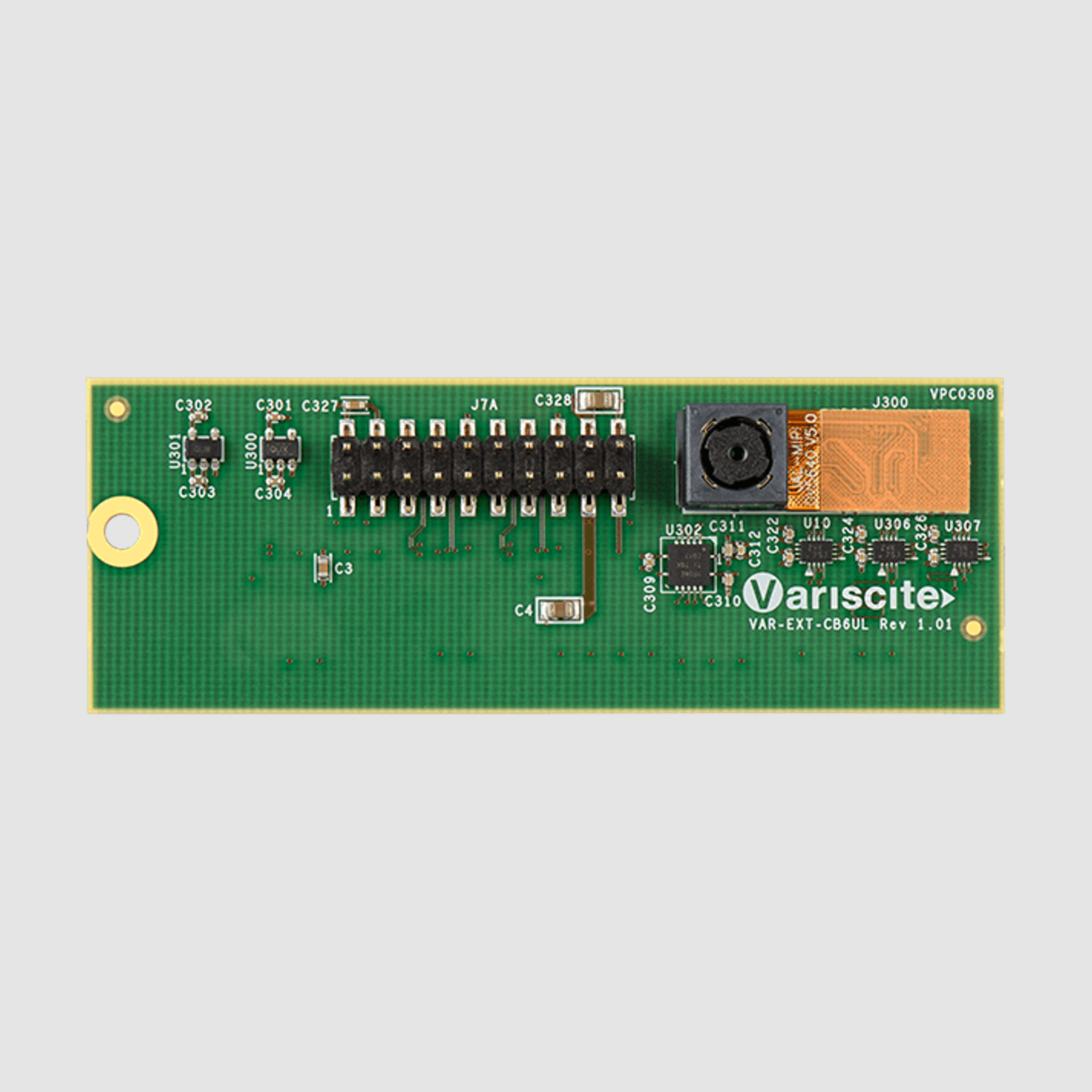

DART-6UL Camera

• Sensor : Ominivsion OV5640 MIPI CMOS
• Resolution : 5MP / 1080p
• Real-time CPU :
• Memory & Storage :
• Certified WiFi/BT :
• Ethernet :
• USB :

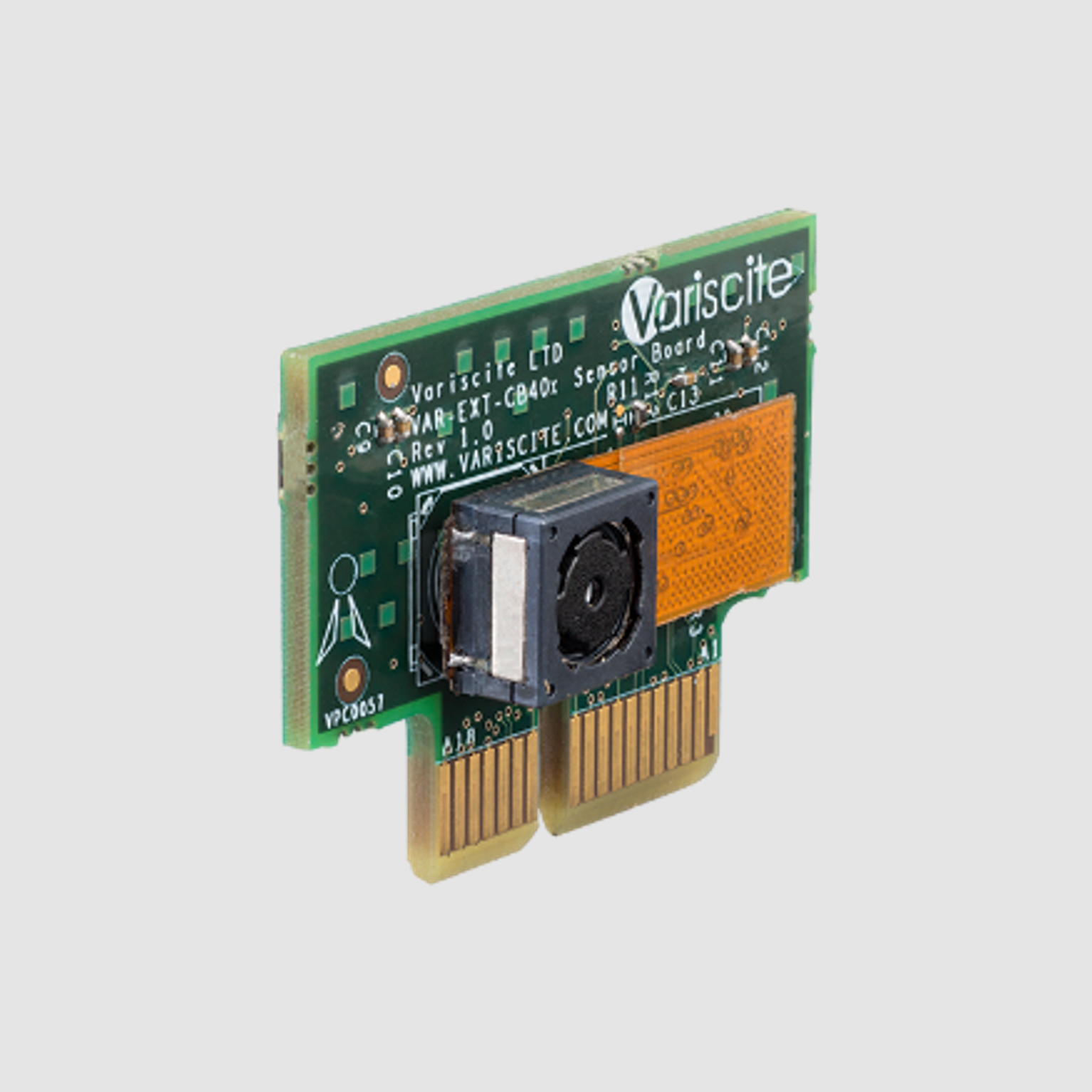

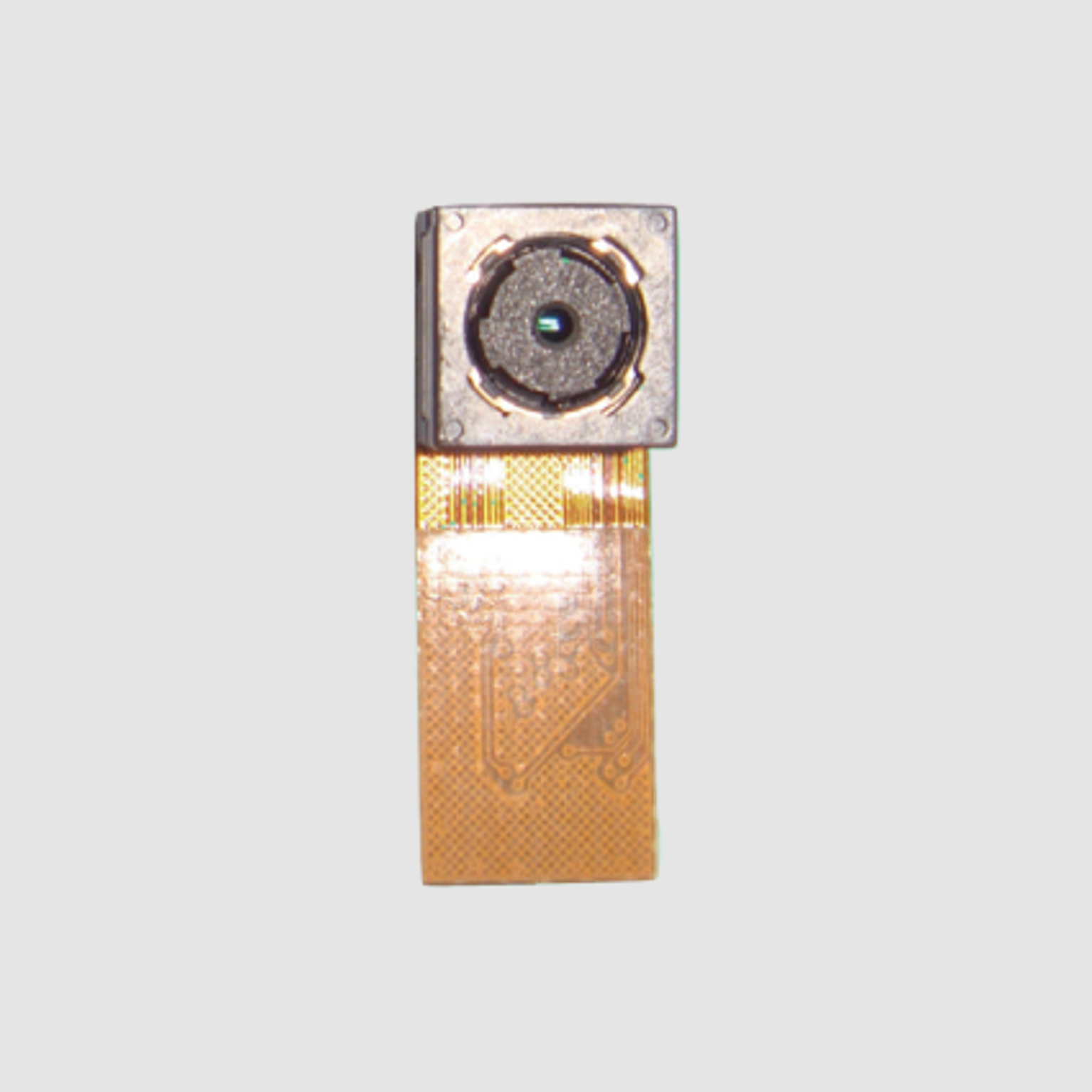

Camera Sensor

• Ominivsion OV5640 MIPI CMOS sensor
• 5MP / 1080p

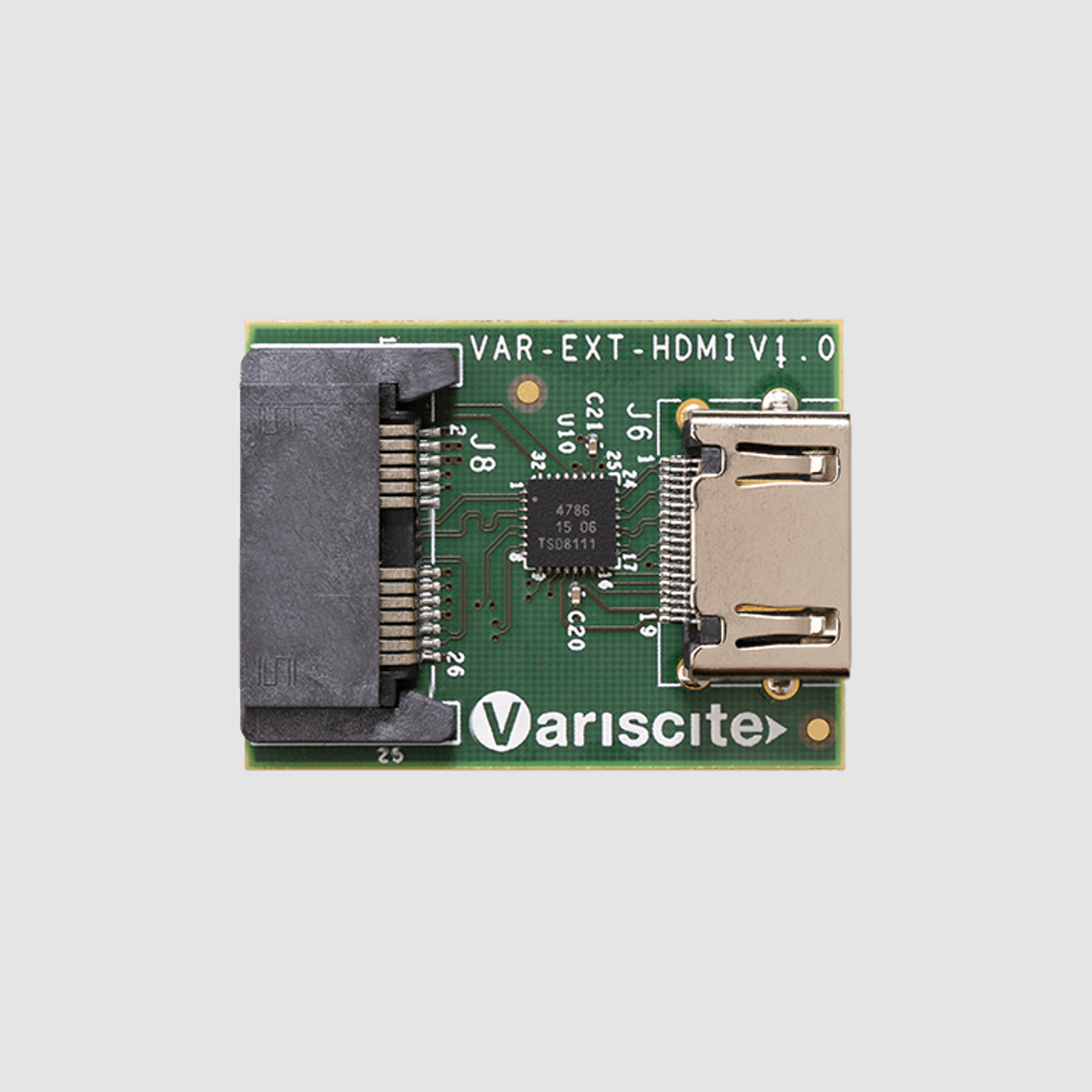

HDMI Extension Board

• Resolution : V2.0a up to 4Kp60

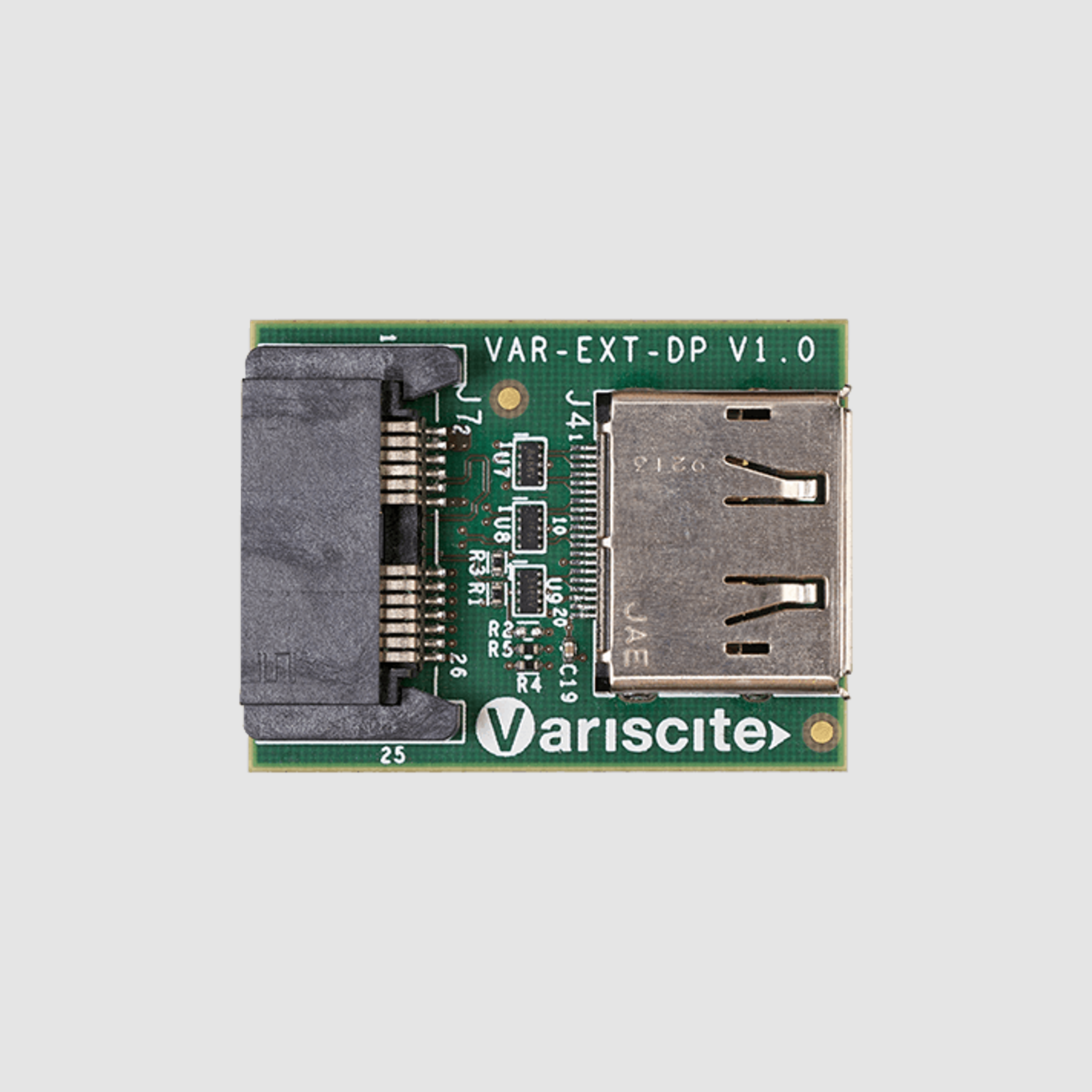

DP Extension Board

• Resolution : DP1.3 up to 4Kp60

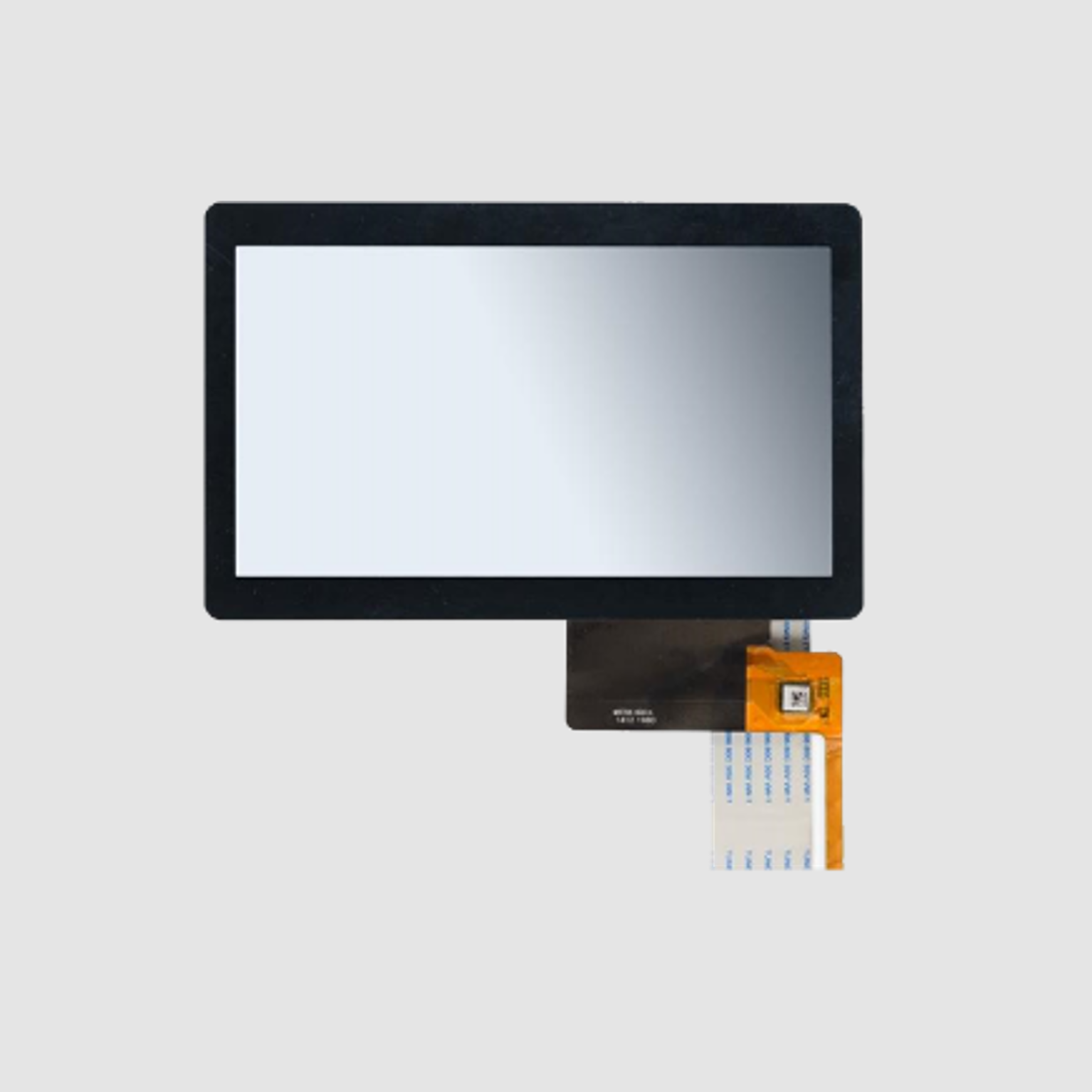

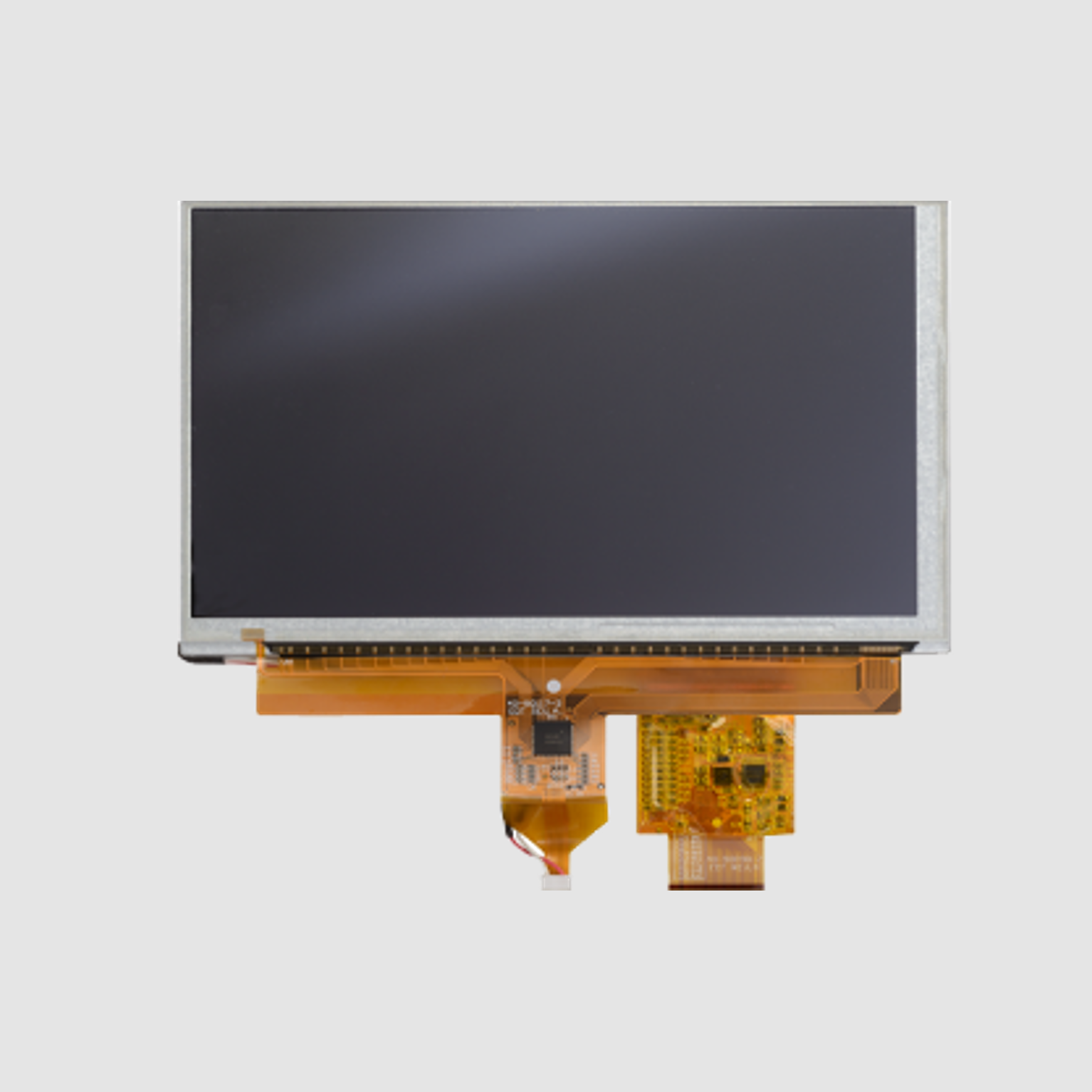

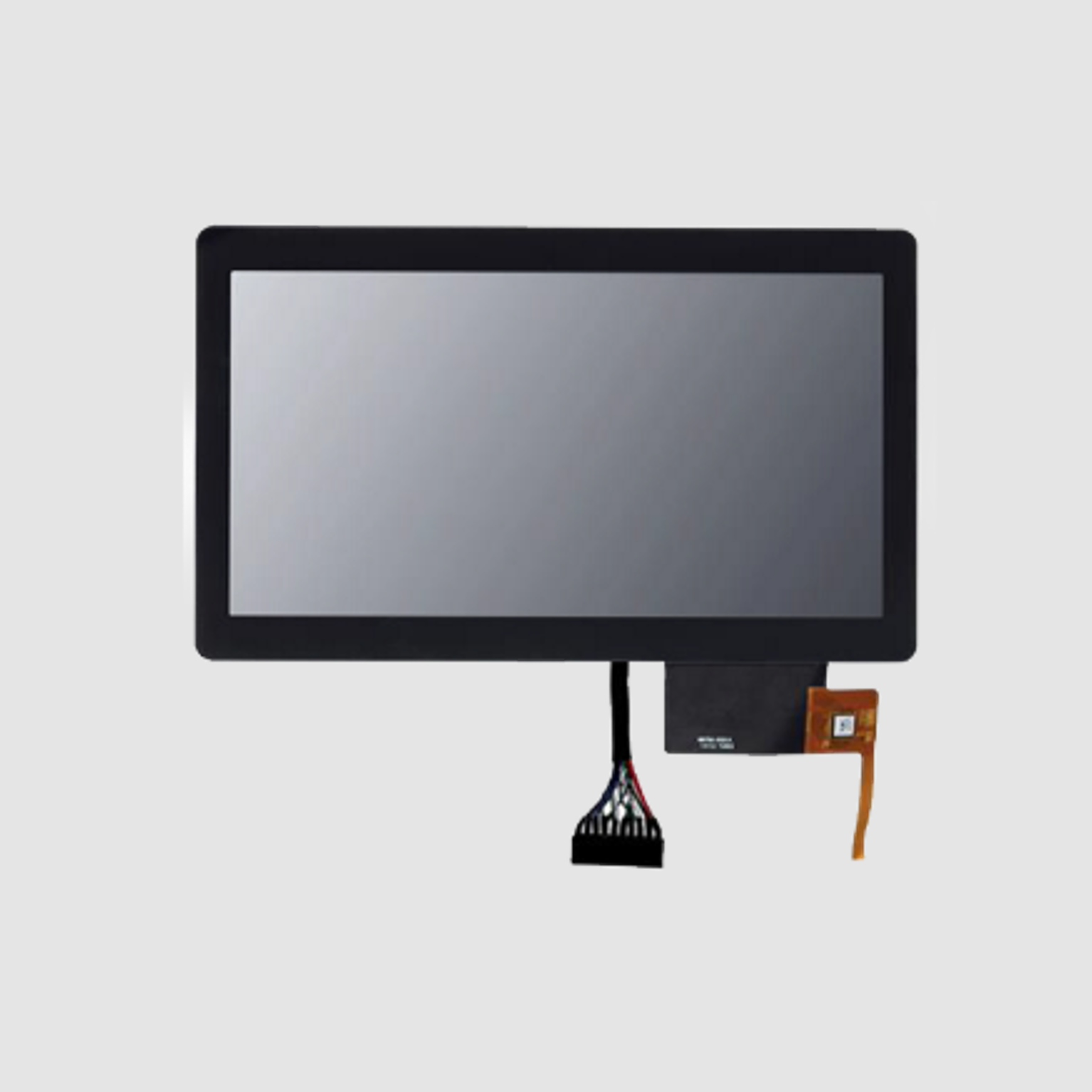

• 7″ LCD 800 x 480 (WVGA)
• Capacitive touch panel (I2C)
• Video LVDS interface

• 7″ LCD 800 x 480 (WVGA)
• Capacitive touch panel (I2C)
• Video parallel RGB interface

• 7″ LCD 800 x 480 (WVGA)
• Capacitive touch panel (I2C)
• Video parallel RGB interface

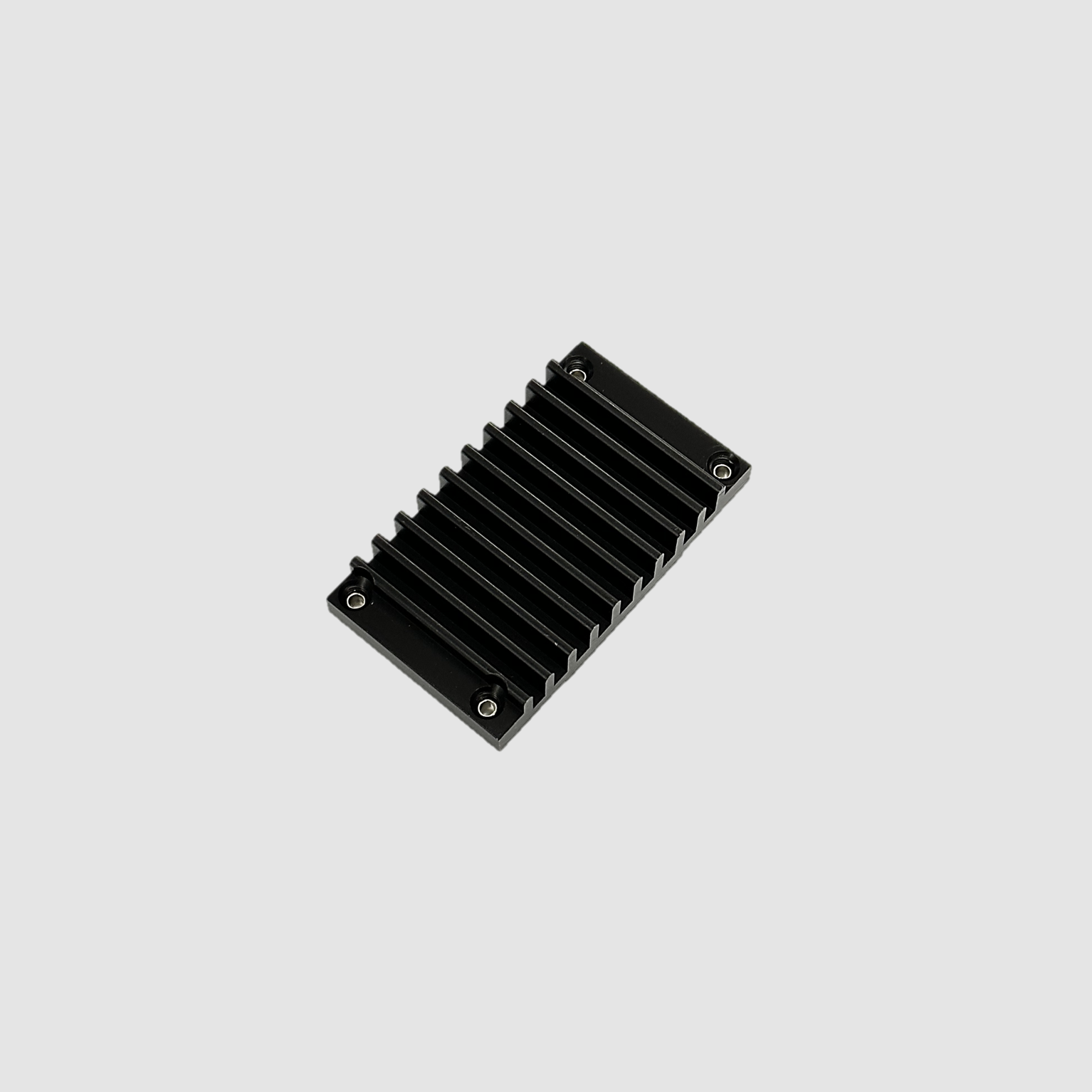

• Heat Sink

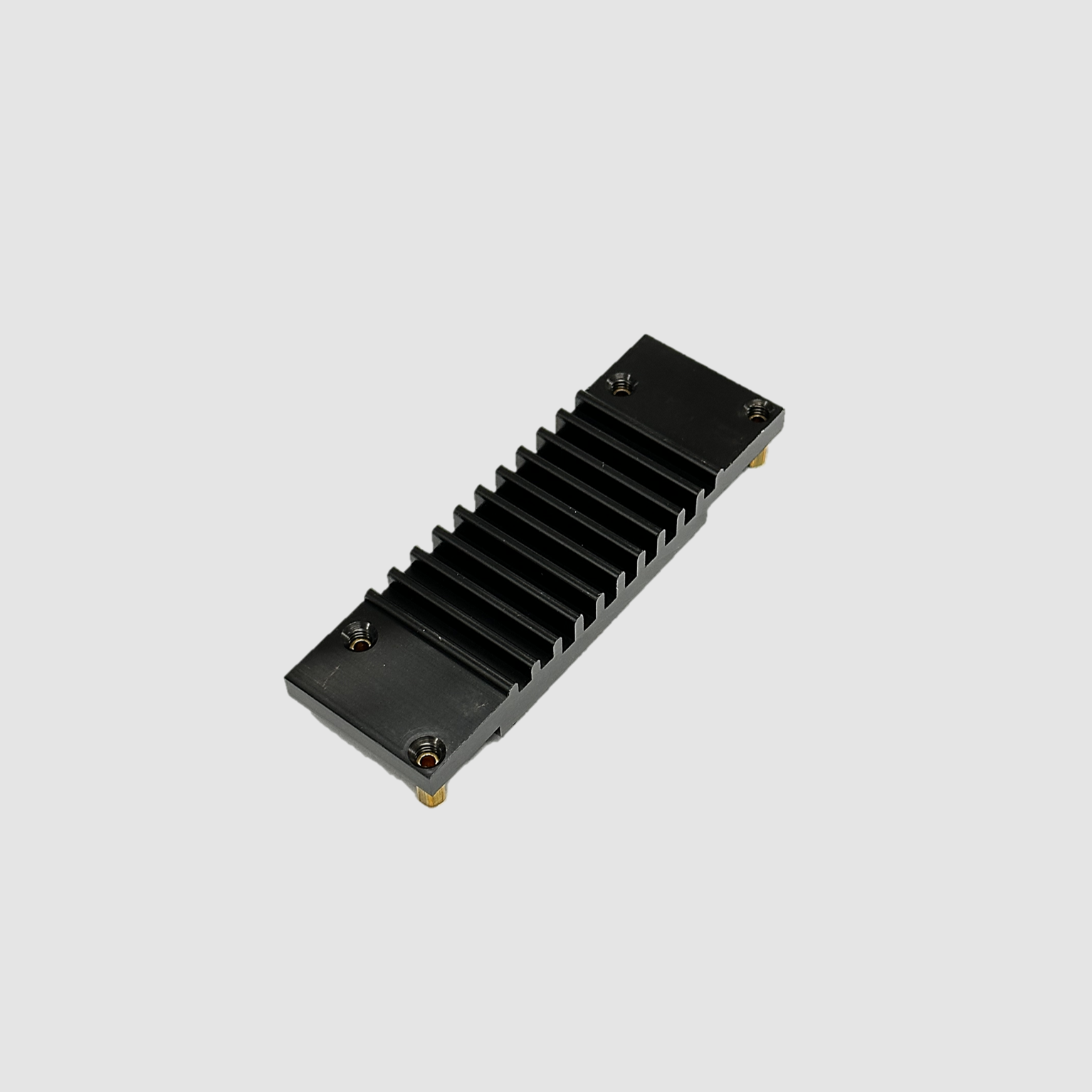

• Heat Sink

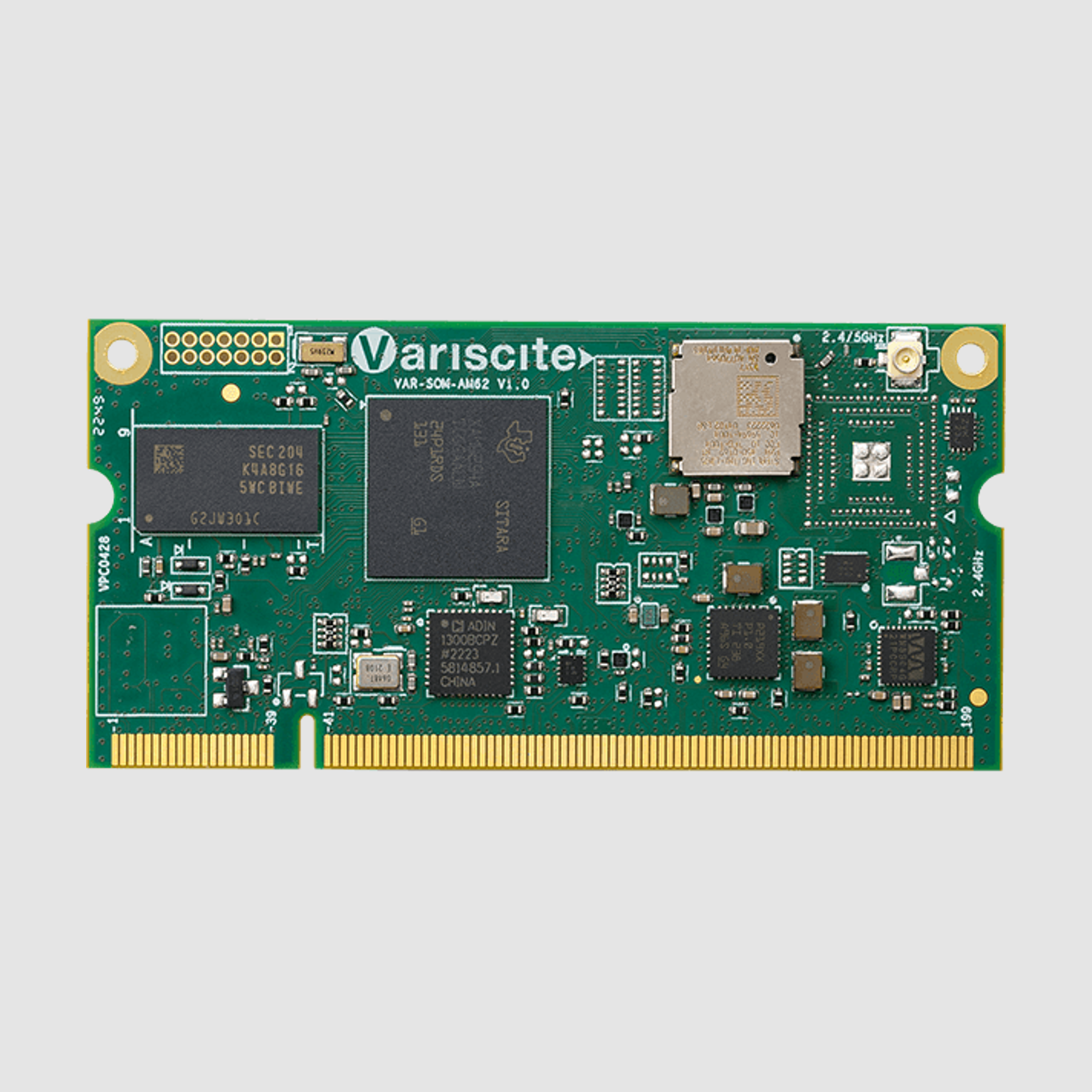

TI Sitara AM62x

• CPU Name : Texas Instruments Sitara AM62x
• CPU Type : 1.4GHz Cortex™-A53
• Real-time CPU : 400MHz Cortex™-M4F and 333MHz PRU
• Memory & Storage : 4 GB RAM, 128 GB eMMC
• Ethernet : 2x 10/100/1000 Mbps
• USB : 2x USB 2.0 OTG

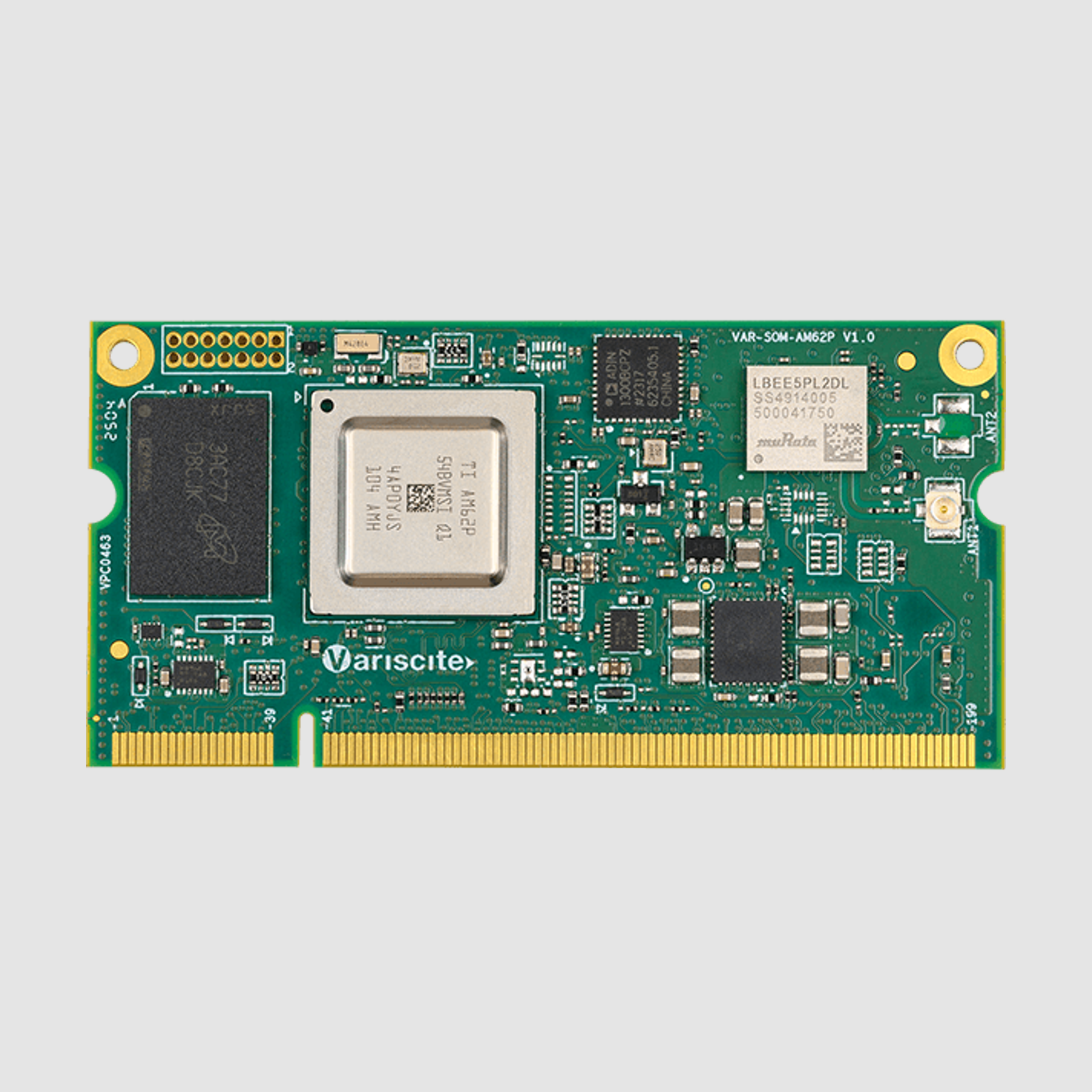

TI Sitara AM62Px

• CPU Name : Texas Instruments Sitara AM62Px
• CPU Type : 1.4GHz Cortex™-A53
• Real-time CPU : 800MHz Cortex™-R5F
• Memory & Storage : 8 GB RAM, 128 GB eMMC
• USB : 2x USB 2.0 OTG

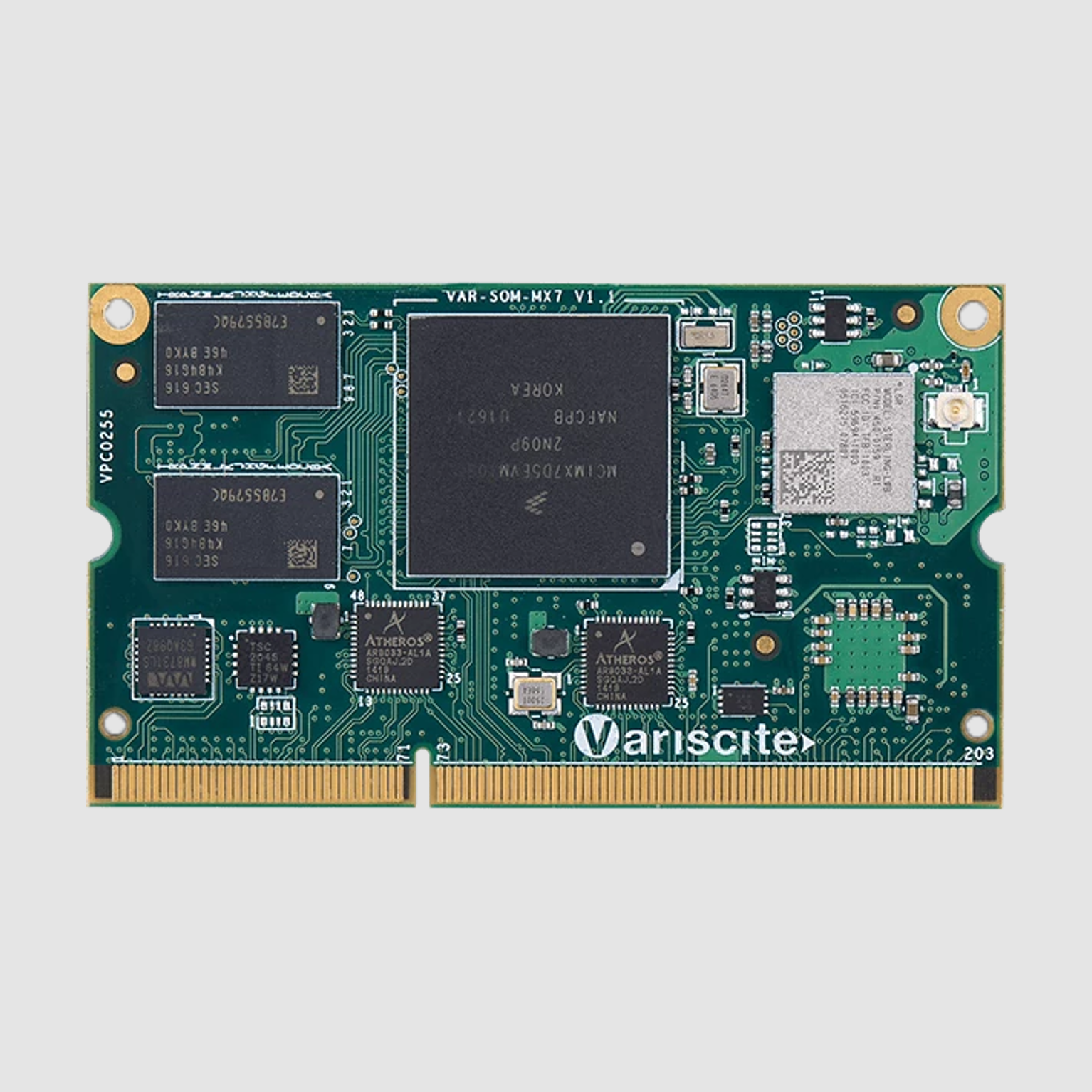

NXP/Freescale iMX7

• CPU Name : NXP/Freescale iMX7
• CPU Type : Dual 1 GHz Cortex™-A7
• Real-time CPU : 200 MHz Cortex-M4
• Memory & Storage : 2 GB DDR3L, 512 MB NAND, 128 GB eMMC
• WiFi/BT : 802.11 ac/a/b/g/n, Bluetooth 5.2/BLE
• Ethernet : Dual 10/100/1000Mbps

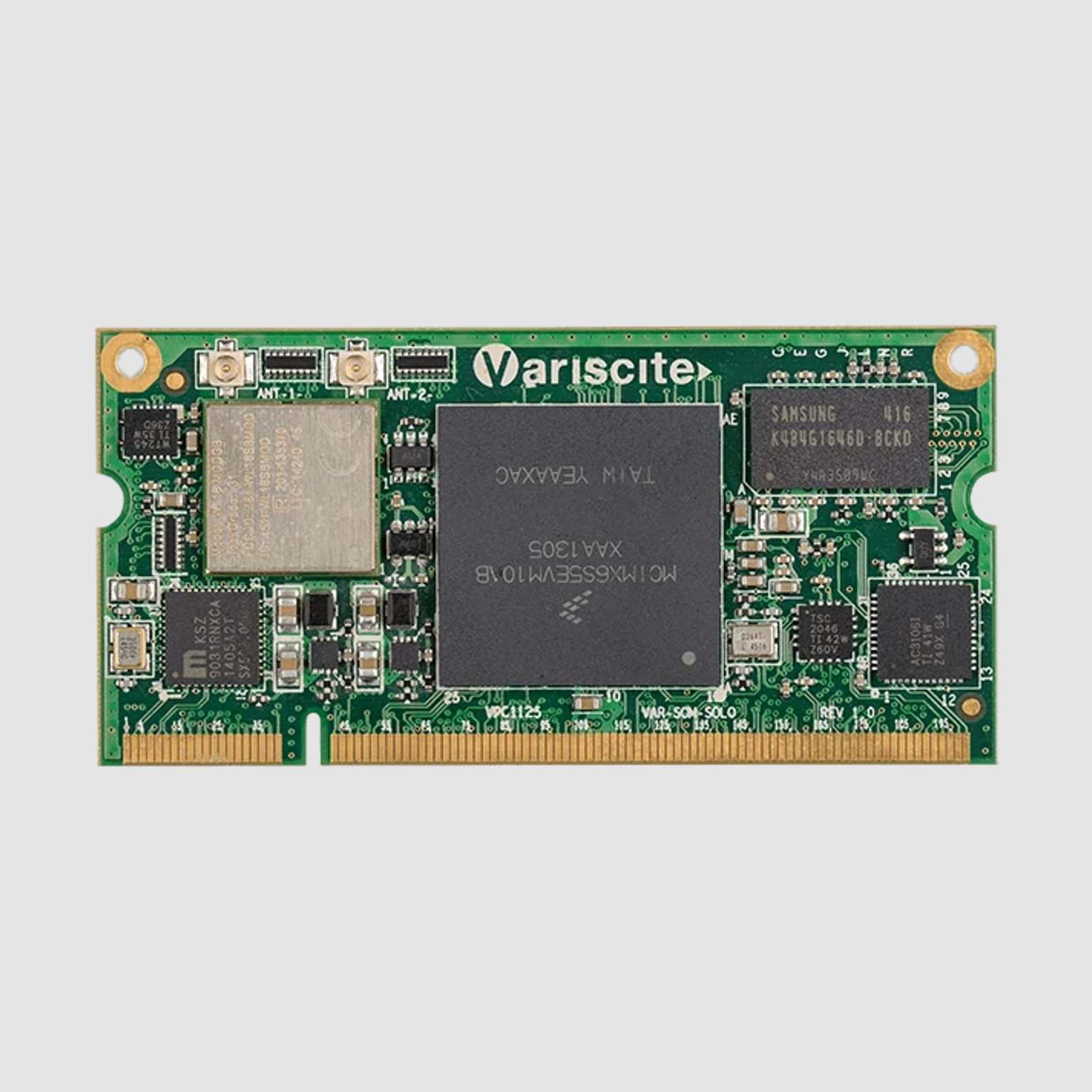

NXP/Freescale iMX6

• CPU Name : NXP/Freescale iMX6
• CPU Type : 1GHz Single/Dual Cortex™-A9
• Graphics Acceleration : Vivante GC 880 + Vivante GC 320
• Video Encode / Decode : 1080p30 H.264 Decode, 1080p30 H.264 Encode
• Ethernet : 10/100/1000 Mbps Ethernet
• USB : USB 2.0 : 1x Host, 1x OTG

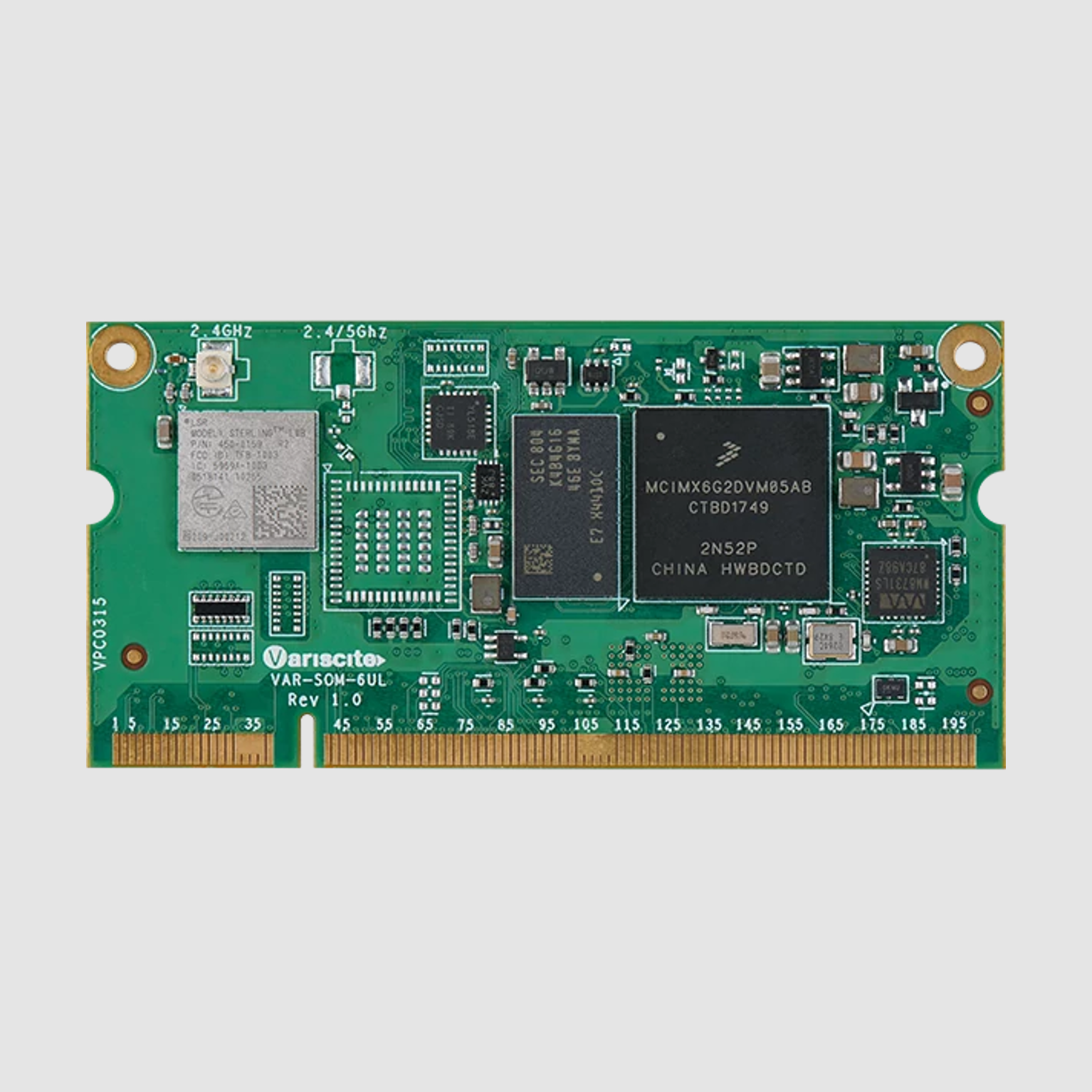

NXP/Freescale iMX6UL / 6ULL / 6ULZ

• CPU Name : NXP/Freescale iMX6UL / 6ULL / 6ULZ
• CPU Type : 900MHz Cortex™-A7
• Memory & Storage : 1 GB DDR3L, 512 MB NAND, 128 GB eMMC
• WiFi/BT : 802.11 ax/ac/a/b/g/n, Bluetooth 5.4/BLE
• Ethernet : Dual 10/100Mbps
• Power consumption : Under 5mA in suspend

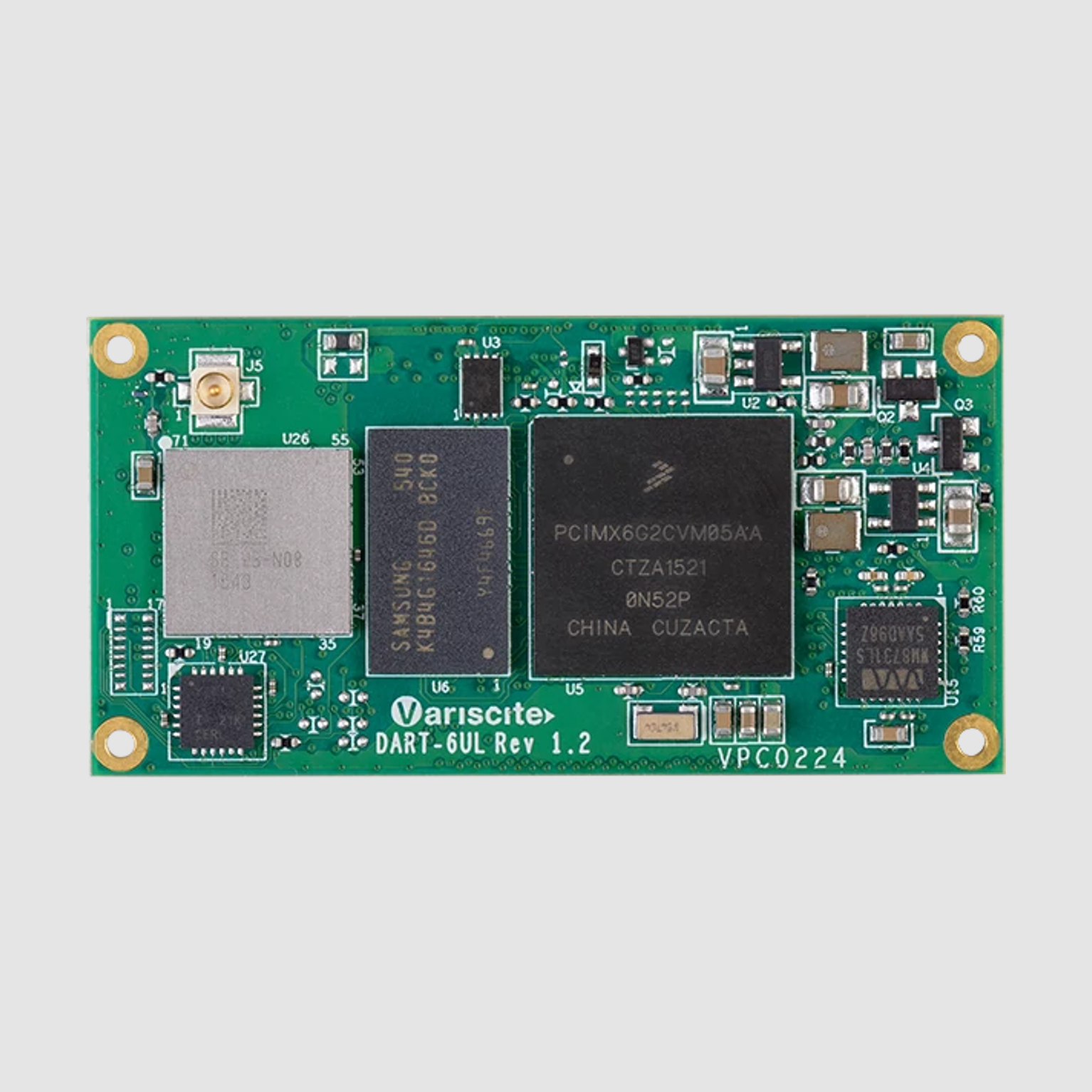

NXP iMX6UL / 6ULL / 6ULZ

• CPU Name : NXP iMX6UL / 6ULL / 6ULZ
• CPU Type : 900MHz Cortex™-A7
• Memory & Storage : 1 GB DDR3L, 512 MB NAND, 128 GB eMMC
• WiFi/BT : 802.11 ac/a/b/g/n, Bluetooth 5.2/BLE
• Ethernet : Dual 10/100Mbps
• Power consumption : Under 5mA in suspend

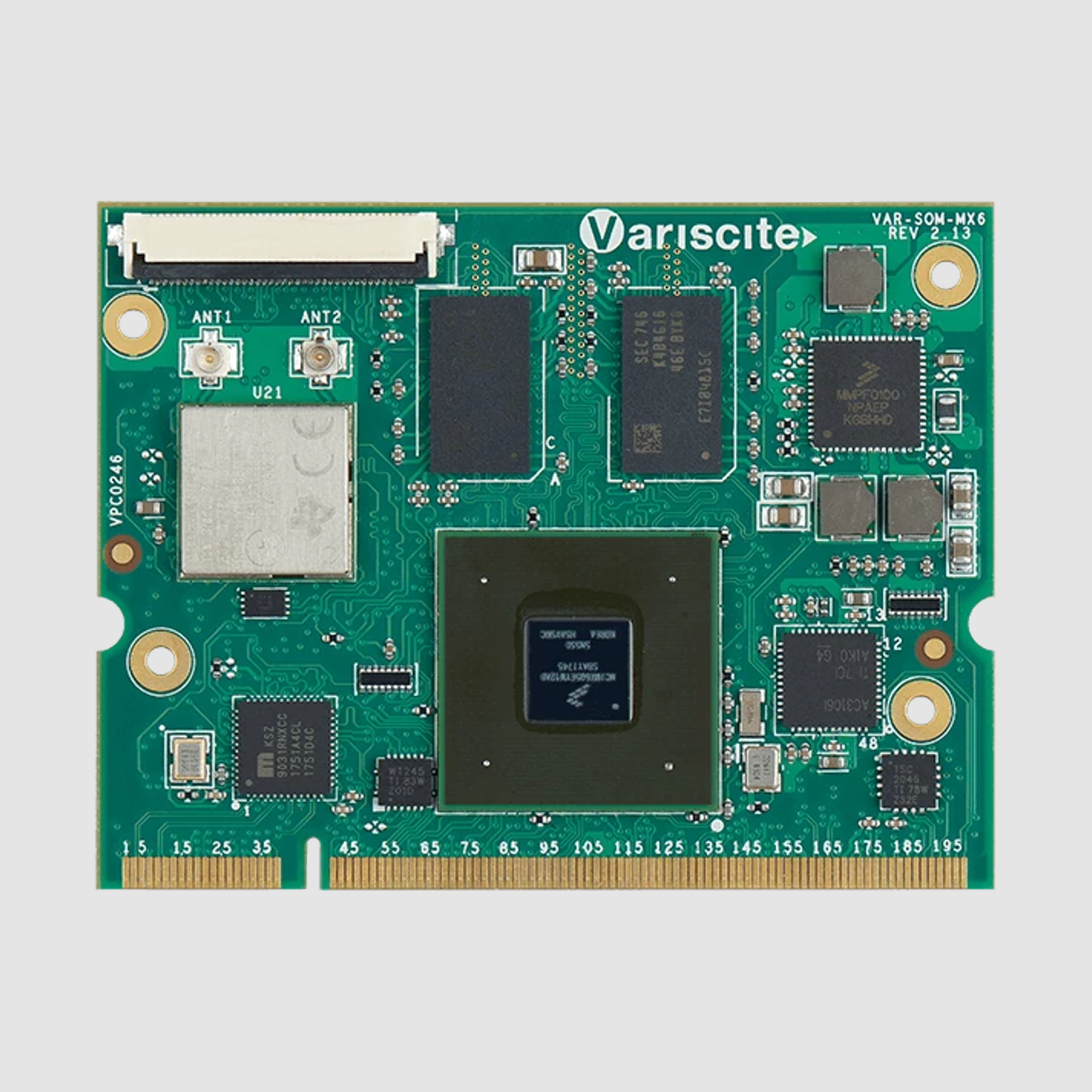

NXP/Freescale iMX6

• CPU Name : NXP/Freescale iMX6
• CPU Types : Solo/Dual Lite/Dual/Quad/QuadPlus
• CPU Speed : 1.2GHz Quad Cortex™-A9
• Memory & Storage : 4 GB DDR3, 1 GB NAND, 128 GB eMMC
• Graphics Accelerator : Vivante™ GC2000 Accelerated 2D and 3D
• WiFi/BT : 802.11 a/b/g/n + MIMO, Bluetooth 5.1 /BLE + CSA2

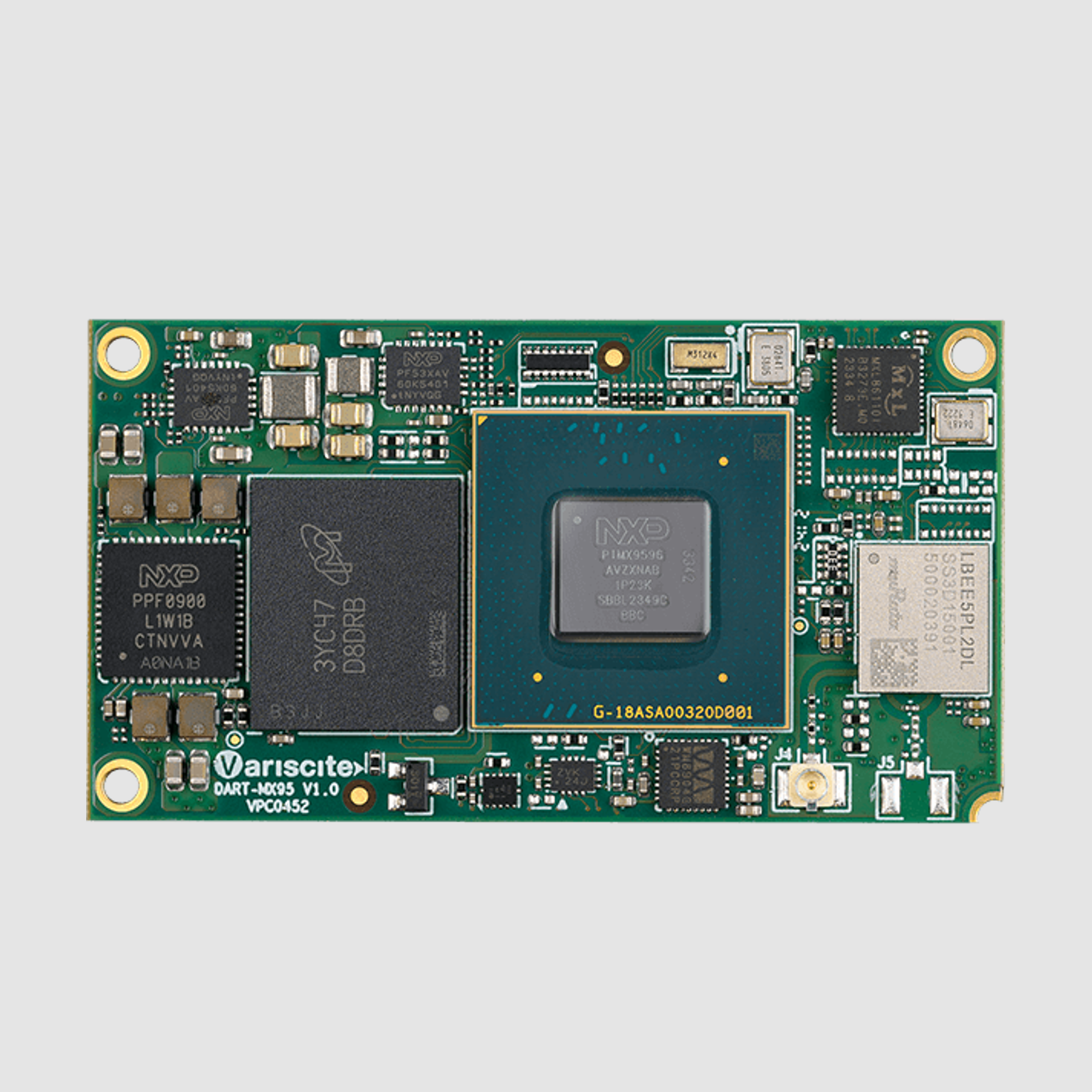

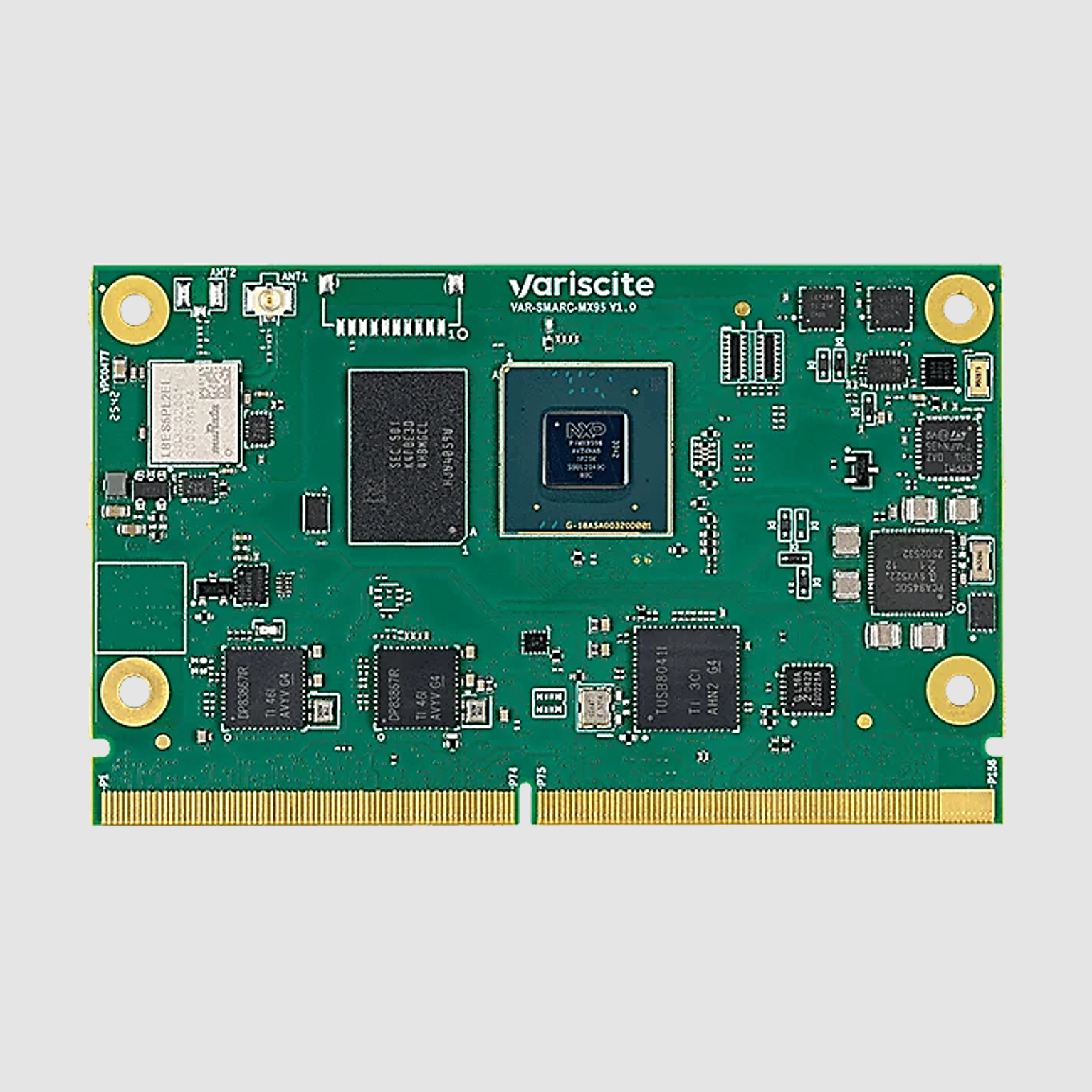

NXP i.MX95

• CPU Name : NXP i.MX95
• CPU Type : 6x 2.0GHz Arm Cortex-A55
• Real-time CPU : 800MHz Arm Cortex-M7 + 250MHz Arm Cortex-M33
• Memory & Storage : 16 GB RAM, 128 GB eMMC
• Certified WiFi/BT : Wi-Fi 6 802.11 ax/ac/a/b/g/n and BT/BLE 5.4
• Ethernet : 2x GbE +1x 10GbE
• USB : 2x USB 3.0/2.0

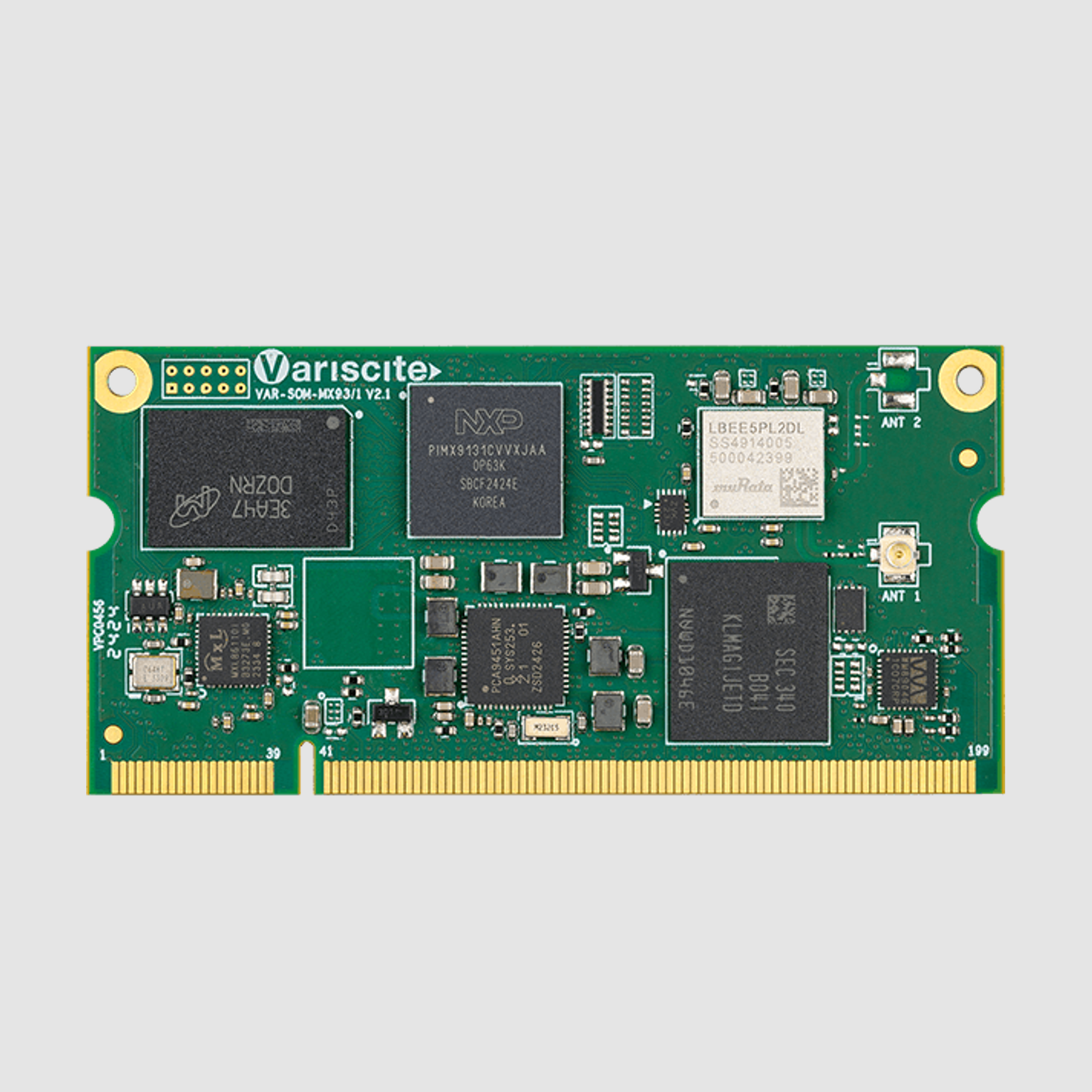

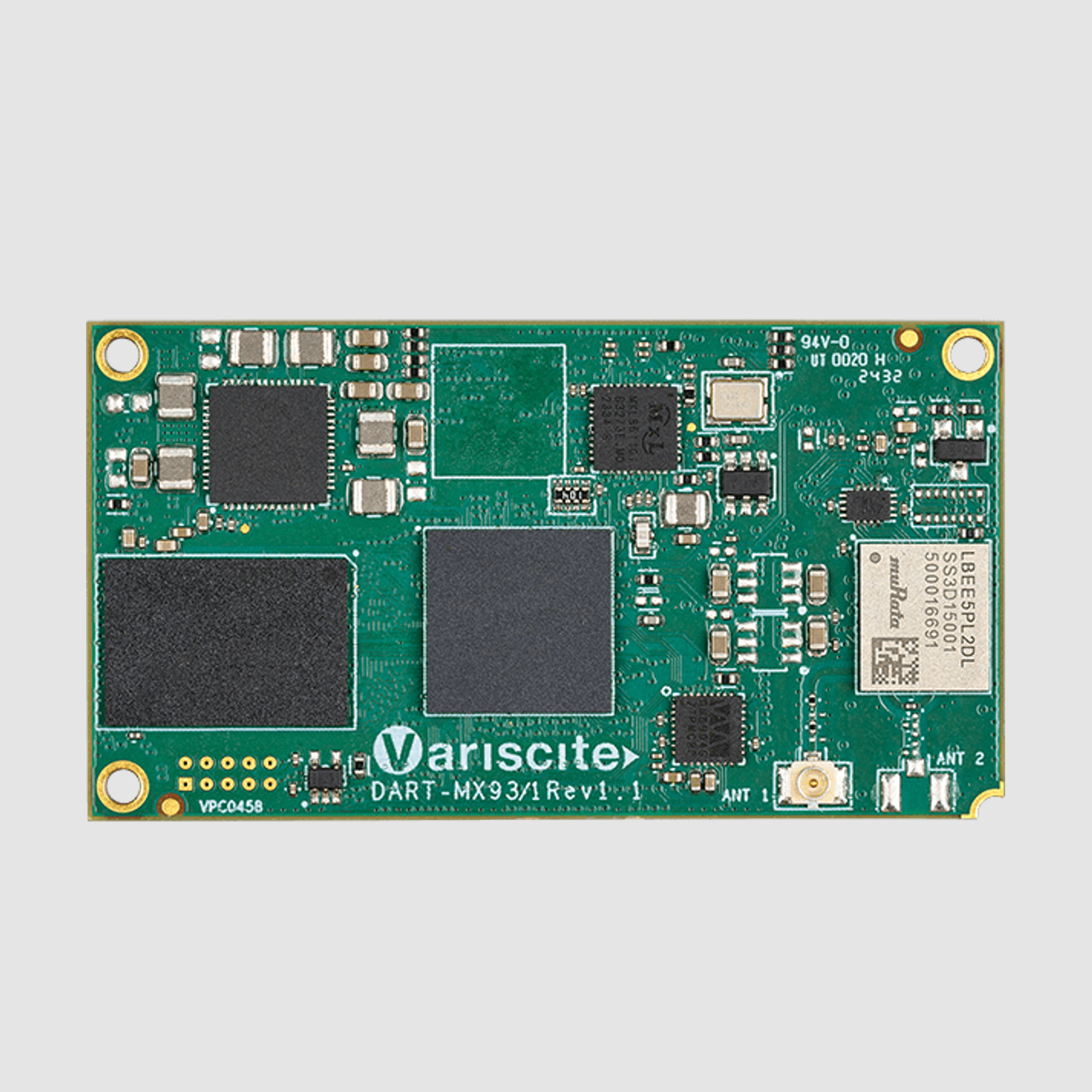

NXP i.MX93

• CPU Name : NXP i.MX93
• CPU Type : 1.7GHz Dual Cortex™-A55
• Real-time CPU : 250Mhz Cortex™-M33
• Memory & Storage : 2 GB RAM, 128 GB eMMC
• Certified WiFi/BT : Wi-Fi 6 802.11 ax/ac/a/b/g/n and BT/BLE 5.4
• Ethernet : Wi-Fi 6 802.11 ax/ac/a/b/g/n and BT/BLE 5.4

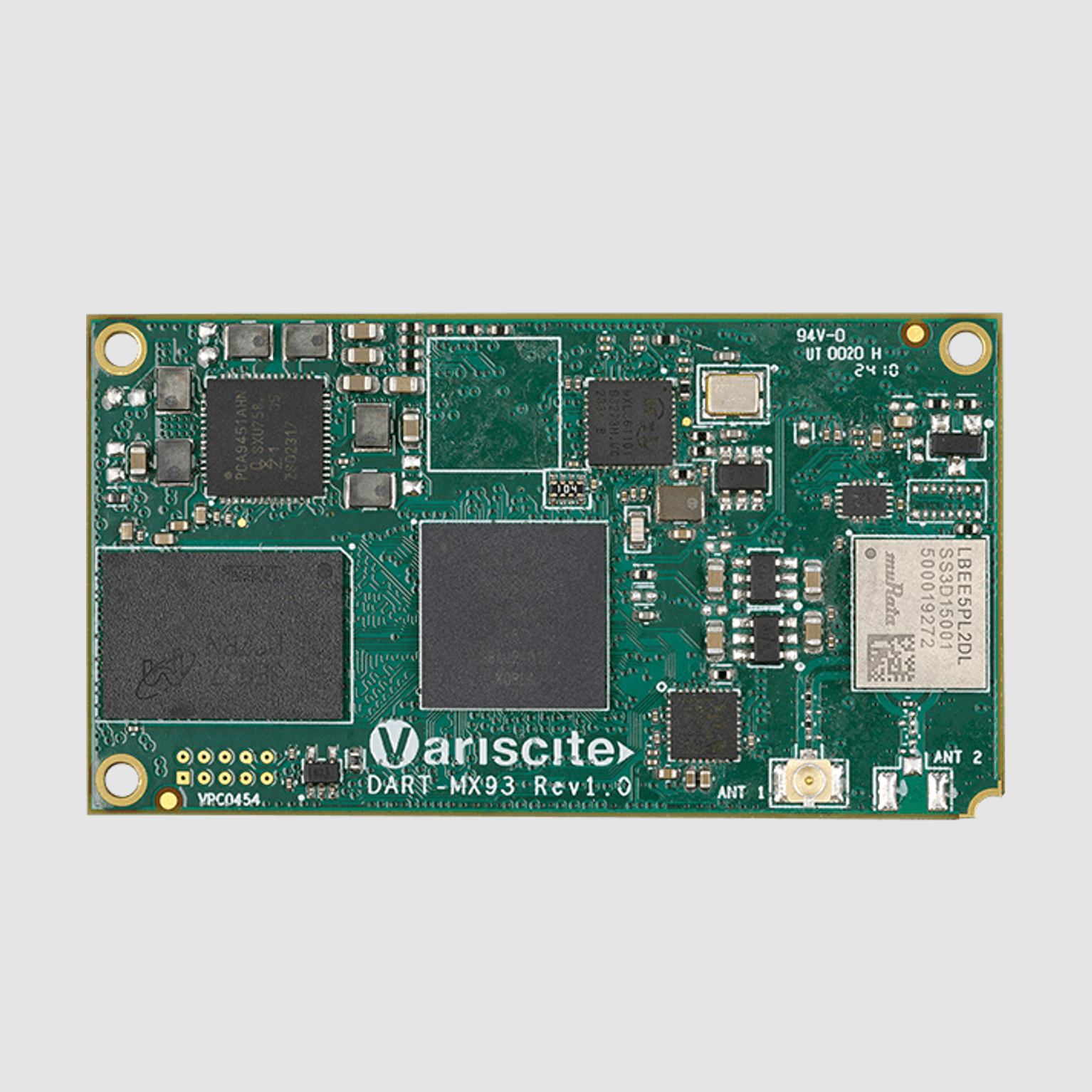

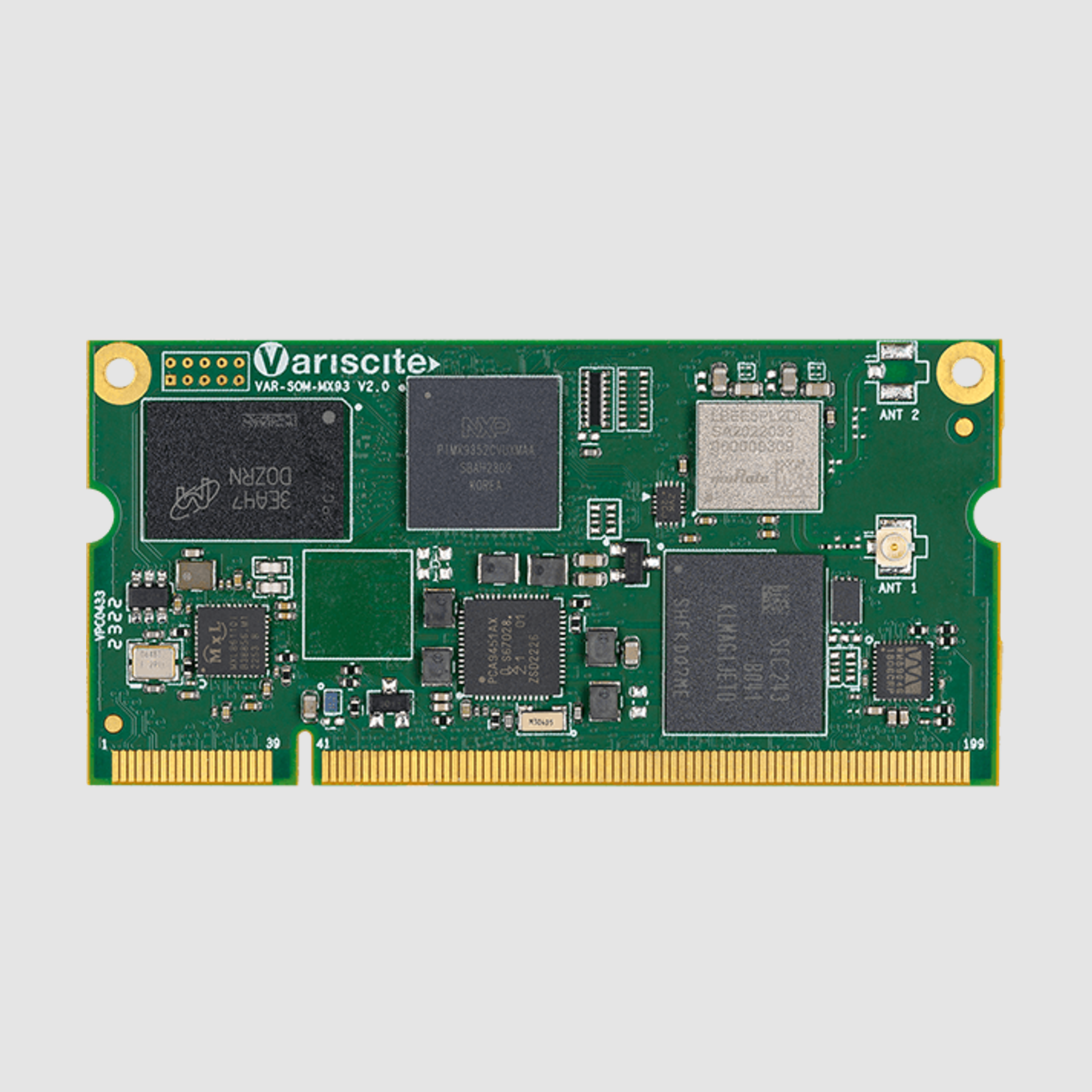

NXP i.MX93

• CPU Name : NXP i.MX93
• CPU Type : 1.7GHz Dual Cortex™-A55
• Real-time CPU : 250Mhz Cortex™-M33
• Memory & Storage : 2 GB RAM, 128 GB eMMC
• Certified WiFi/BT : Wi-Fi 6 802.11 ax/ac/a/b/g/n and BT/BLE 5.4
• Ethernet : 2x 10/100/1000 Mbps

NXP i.MX91

• CPU Name : NXP i.MX91
• CPU Type : 1.4GHz Single Cortex™-A55
• Memory & Storage : 2 GB RAM, 128 GB eMMC
• Ethernet : 2x 10/100/1000 Mbps
• USB : 2x USB 2.0 OTG

NXP i.MX91

• CPU Name : NXP i.MX91
• CPU Type : 1.4GHz Single Cortex™-A55
• Memory & Storage : 2 GB RAM, 128 GB eMMC
• Ethernet : 2x 10/100/1000 Mbps
• USB : 2x USB 2.0 OTG

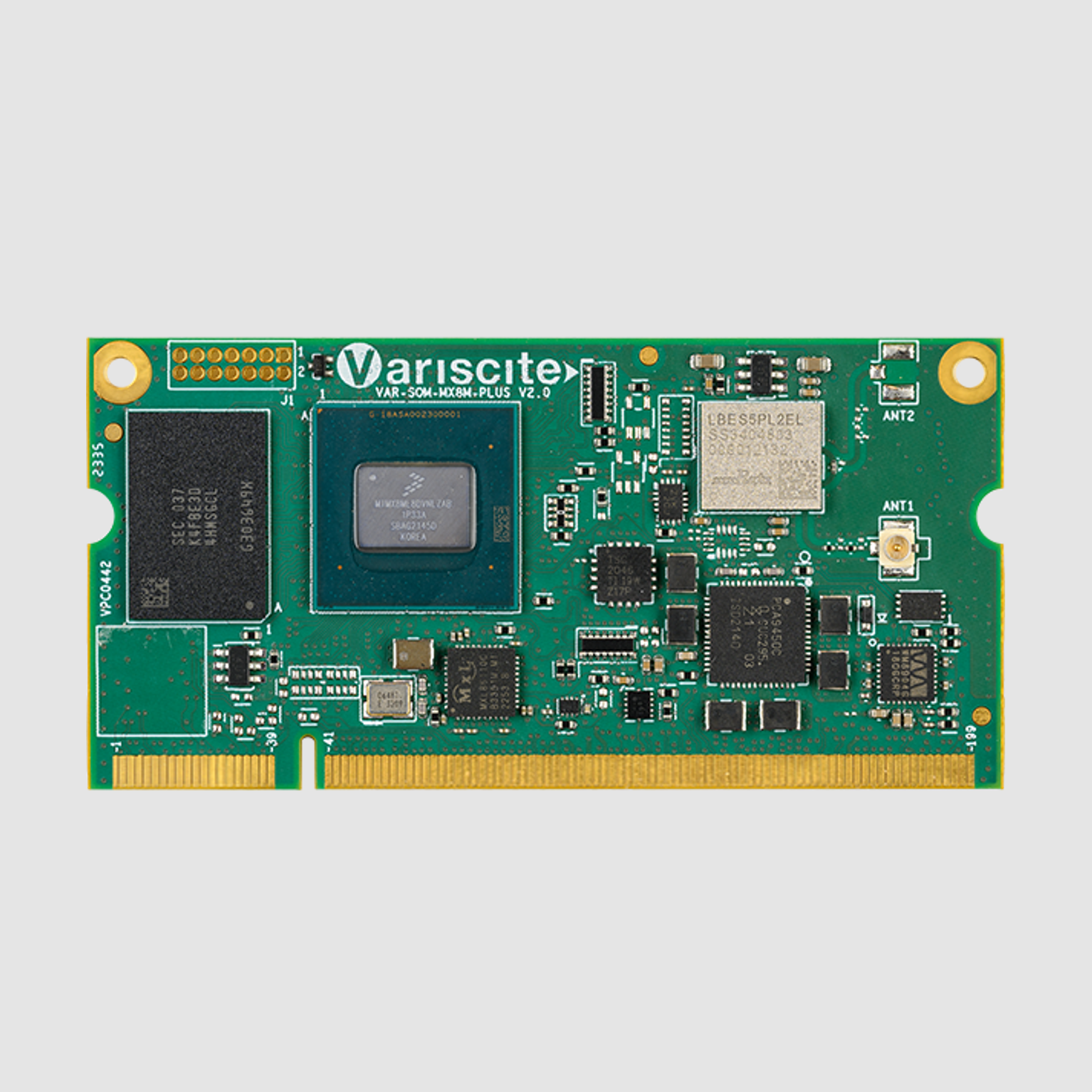

NXP i.MX 8M Plus

• CPU Name : NXP i.MX 8M Plus
• CPU Type : 1.8GHz Quad Cortex™-A53
• Real-time CPU : 800MHz ARM Cortex™-M7
• Memory & Storage : 4 GB RAM, 128 GB eMMC
• Ethernet : 2x 10/100/1000 Mbps
• USB : 2x USB 3.0/2.0 OTG

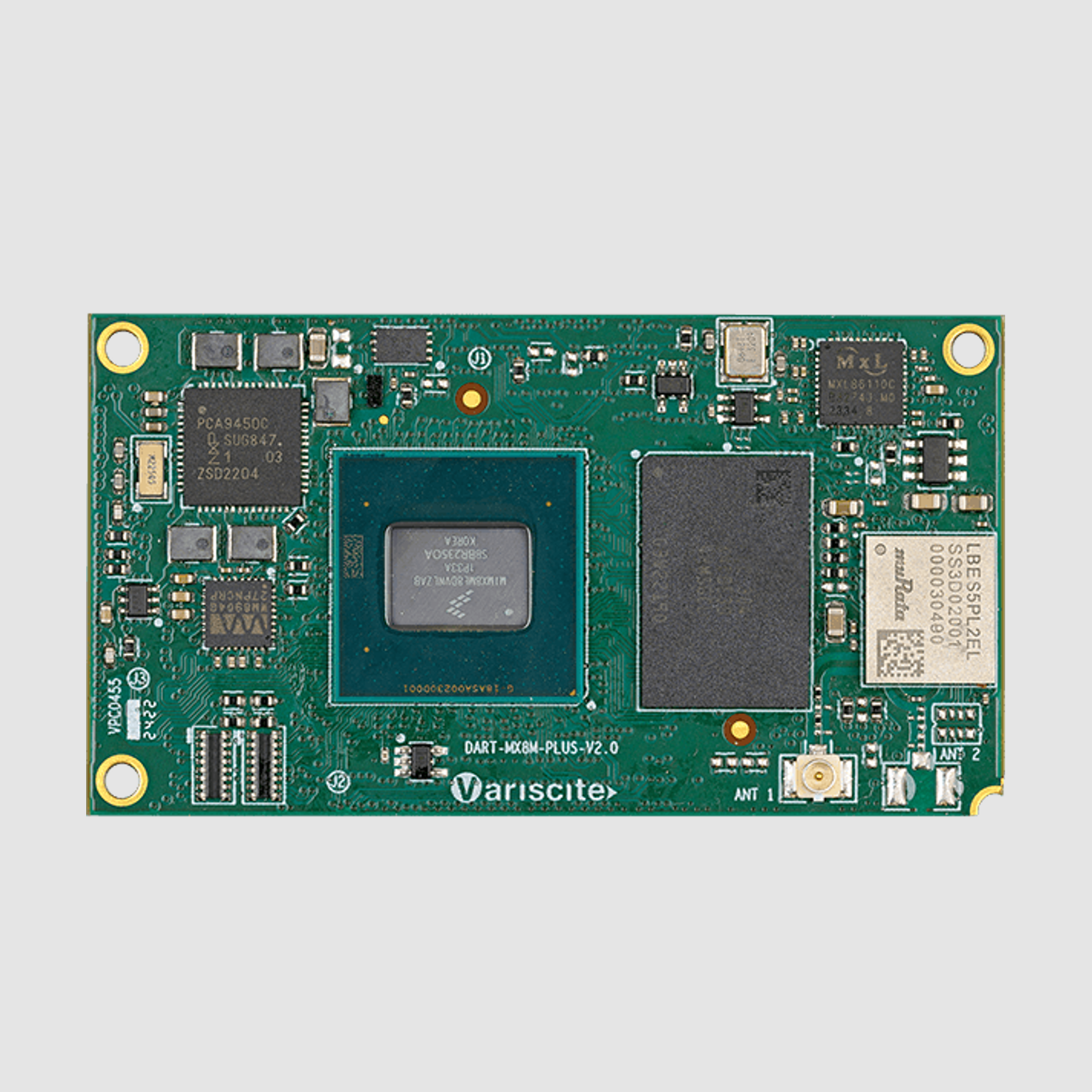

NXP i.MX 8M Plus

• CPU Name : NXP i.MX 8M Plus
• CPU Type : 1.8GHz Quad ARM Cortex™-A53
• Real-time CPU : 800MHz ARM Cortex™-M7
• Memory & Storage : 4 GB RAM, 128 GB eMMC
• Ethernet : 2x 10/100/1000 Mbps
• USB : 2x USB 3.0/2.0 OTG

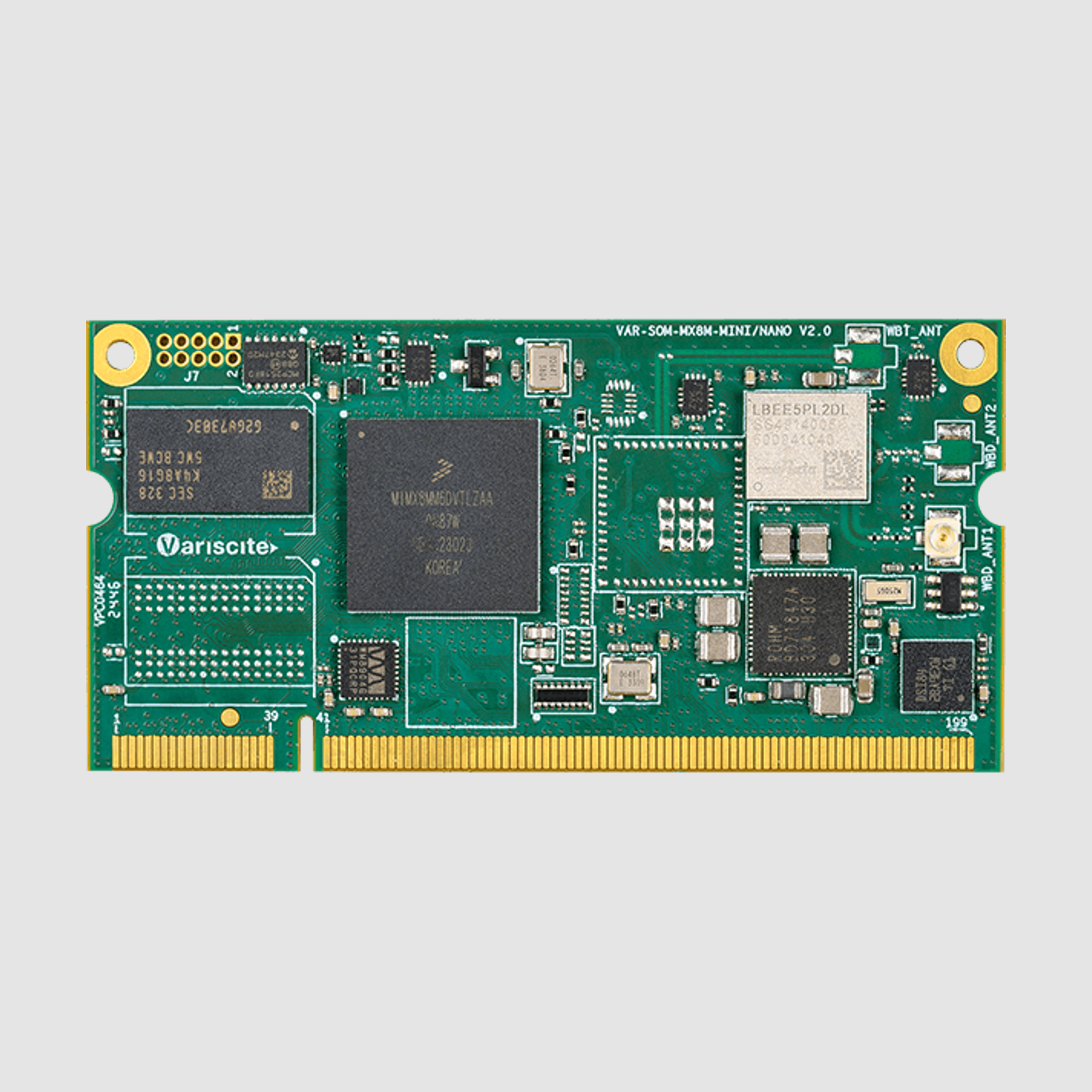

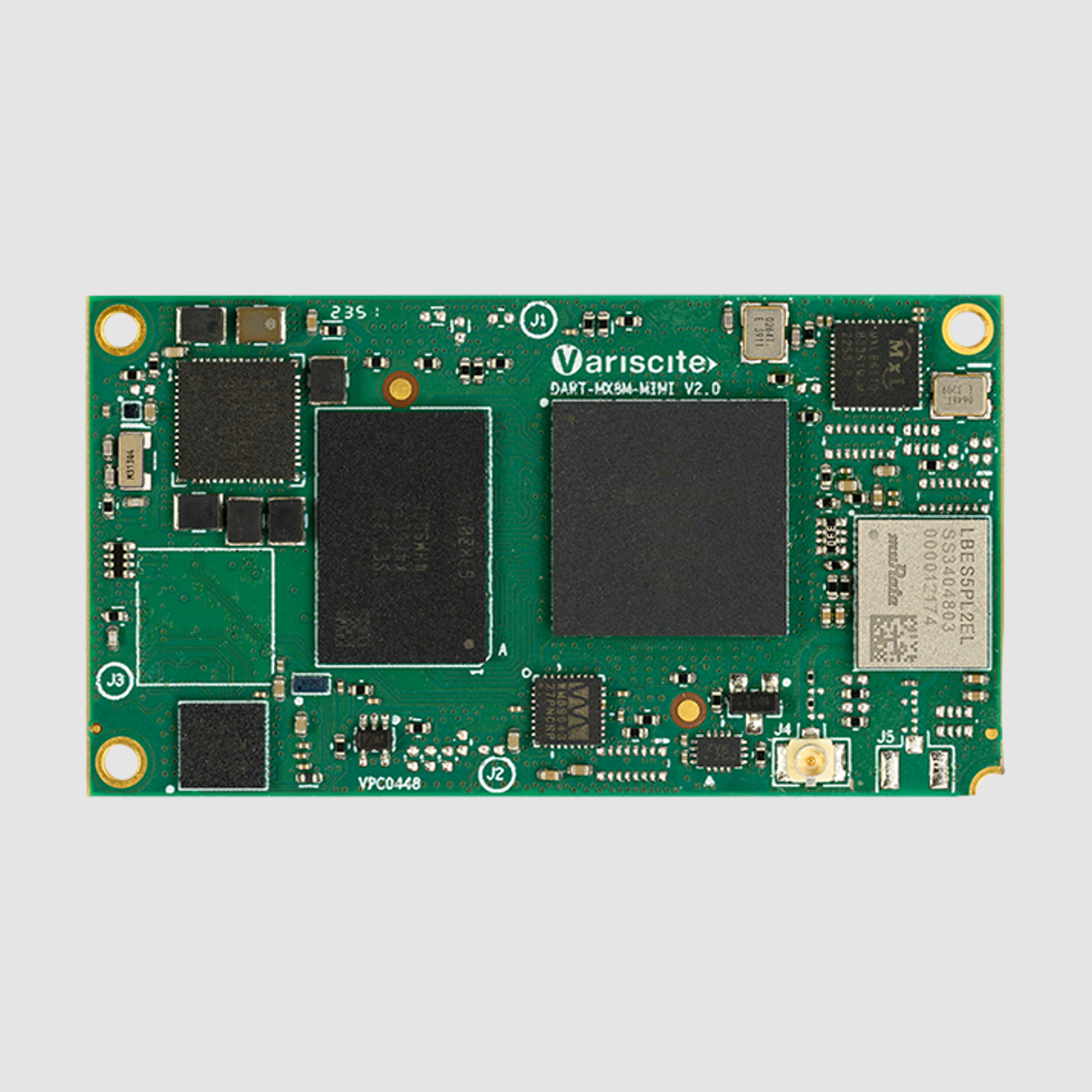

NXP i.MX8M Mini

• CPU Name : NXP i.MX8M Mini
• CPU Type : 1.8GHz Quad Cortex™-A53
• Real-time CPU : 400MHz ARM Cortex™-M4
• Memory & Storage : 4 GB RAM, 128 GB eMMC
• Ethernet : 10/100/1000 Mbps
• USB : 2x USB 2.0 OTG

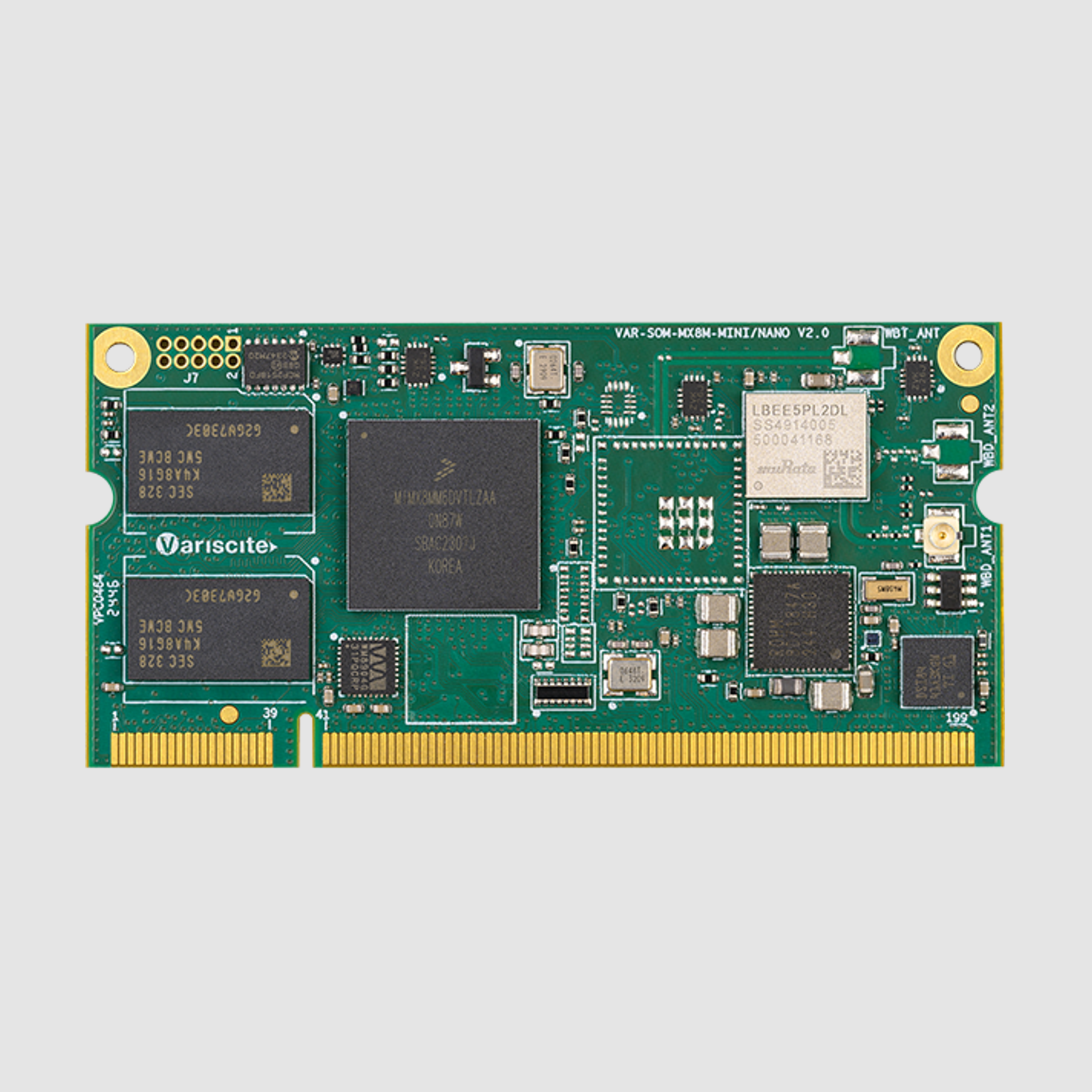

NXP i.MX 8M Mini

• CPU Name : NXP i.MX8M Mini
• CPU Type : 1.8GHz Quad Cortex™-A53
• Real-time CPU : 400MHz ARM Cortex™-M4
• Memory & Storage : 4 GB RAM, 128 GB eMMC
• Ethernet : 10/100/1000 Mbps
• USB : 2x USB 2.0 OTG

NXP i.MX 8M Nano

• CPU Name : NXP i.MX 8M Nano
• CPU Type : 1.5GHz Quad ARM Cortex™-A53
• Real-time CPU : 650MHz ARM Cortex™-M7
• Memory & Storage : 2 GB RAM, 512MB NAND, 128 GB eMMC
• Graphics Acceleration : Vivante GC7000UL
• Ethernet : 10/100/1000 Mbps

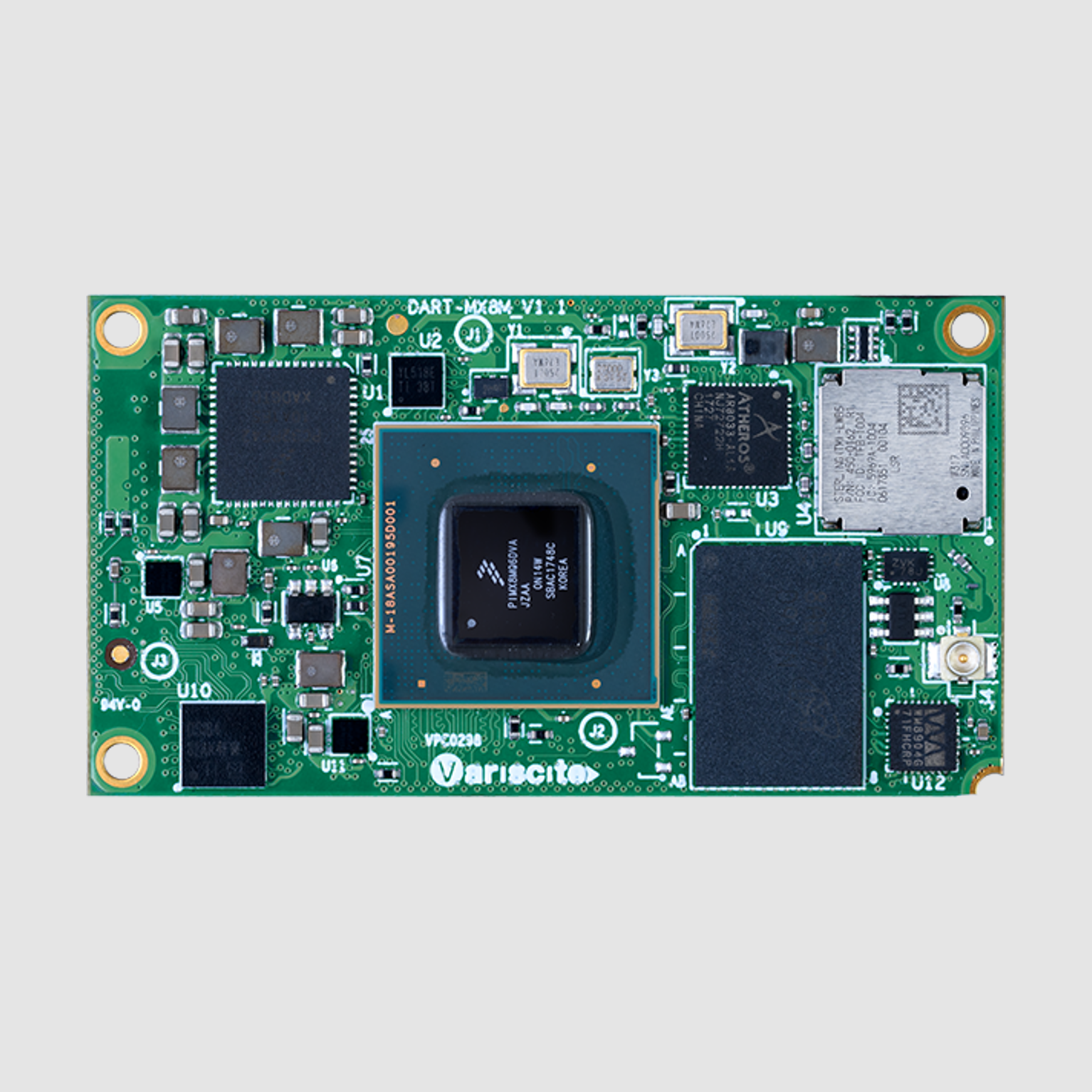

NXP i.MX8M

• CPU Name : NXP i.MX8M
• CPU Type : 1.5GHz Quad Cortex™-A53
• Real-time CPU : 266MHz ARM Cortex™-M4
• Memory & Storage : 4 GB RAM, 128 GB eMMC
• Ethernet : 10/100/1000 Mbps
• USB : 10/100/1000 Mbps

NXP i.MX8X

• CPU Name : NXP iMX8X
• CPU Type : 4x 1.2GHz Cortex™-A35
• Real-time CPU : 264MHz ARM Cortex™-M4F
• Video Acceleration : 4K H.265 Decode, 1080p H.264 Encode/Decode
• Certified WiFi/BT : 802.11ac/a/b/g/n, Bluetooth 5.2 BLE
• Ethernet : 2x 10/100/1000 Mbps

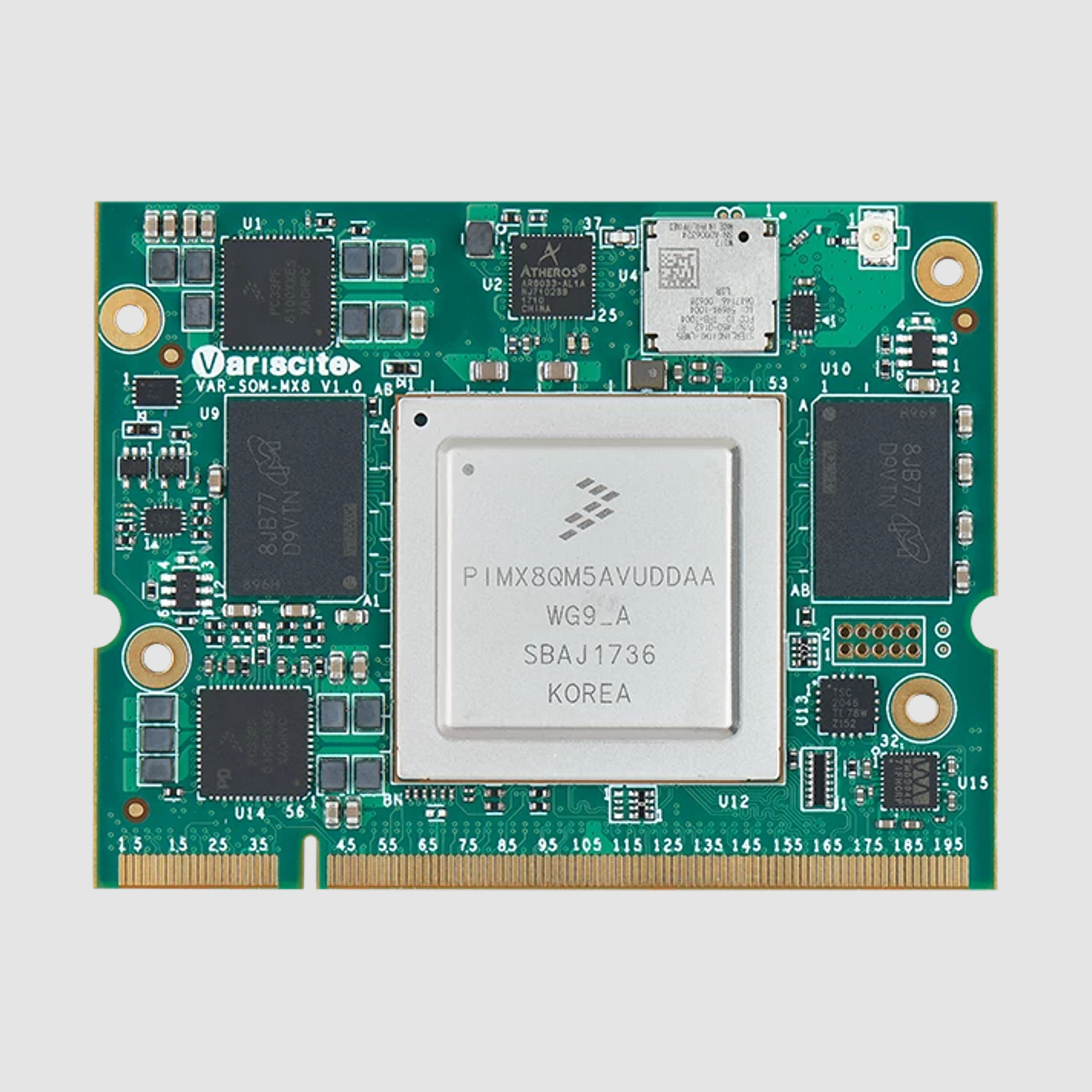

NXP i.MX8

• CPU Name : NXP iMX8 QuadMax / QuadPlus
• CPU Type : 2x 1.6GHz Cortex™-A72 + 4x 1.2GHz Cortex™-A53
• Real-time CPU : 2x 264 MHz Cortex™-M4F
• Graphics Acceleration : 2x GC7000 2D/3D
• Certified WiFi/BT : 802.11ac/a/b/g/n, Bluetooth 5.2 BLE
• Ethernet : 2x 10/100/1000 Mbps

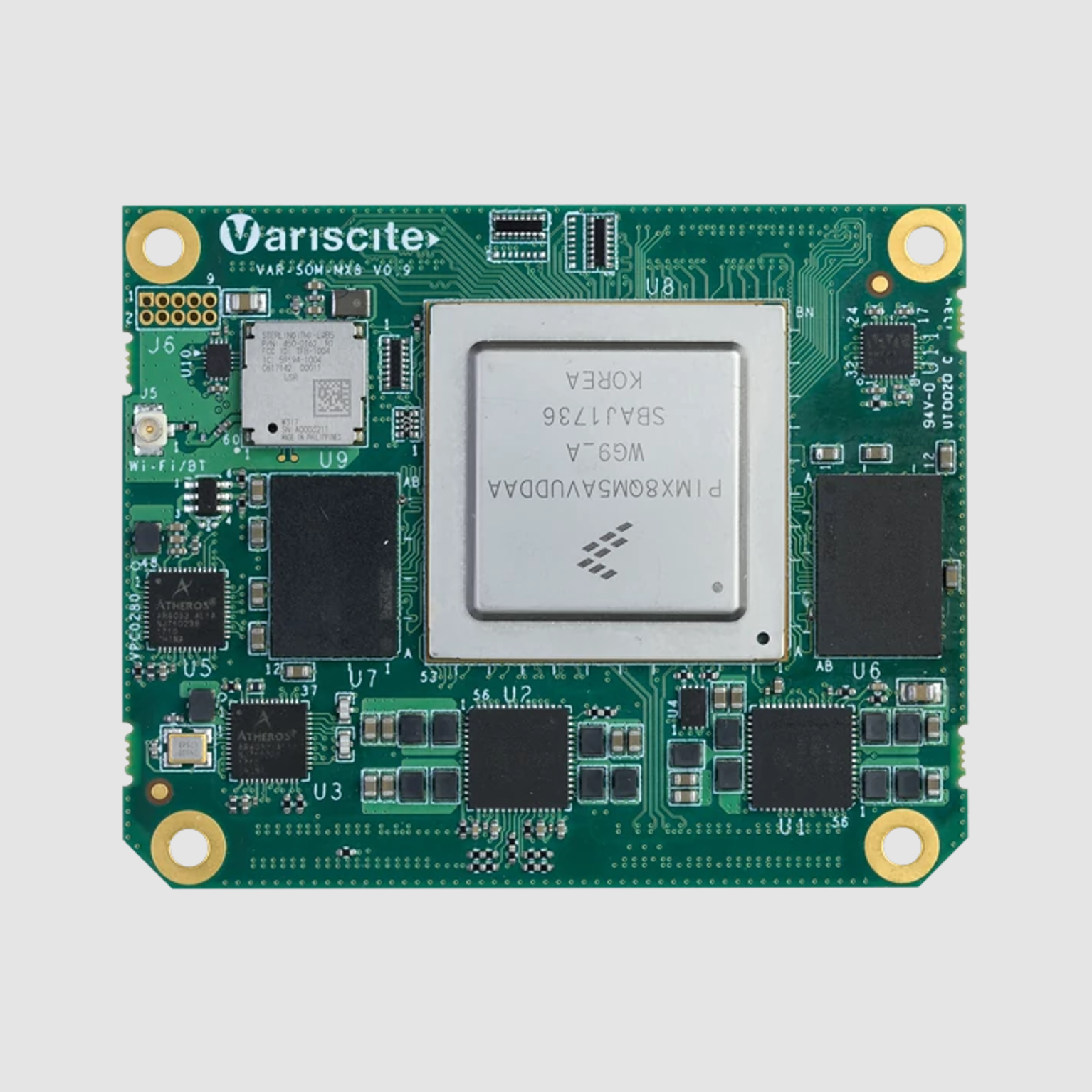

NXP i.MX8

• CPU Name : NXP i.MX8 QuadMax / QuadPlus
• CPU Type : 2x 1.6GHz Cortex™-A72 + 4x 1.2GHz Cortex™-A53
• Real-time CPU : 2x 264 MHz Cortex™-M4F
• Memory & Storage : 8 GB RAM, 128 GB eMMC
• Video Acceleration : 4K h.265/H.264 Decode, 1080p60 h.264 encode
• Camera/Video Input : Dual MIPI CSI, HDMI in
