Variscite i.MX9 Series
VAR-SOM-MX91
작성자 관리자
날짜 2025-06-10 16:48:00
NXP i.MX91
- CPU Name : NXP i.MX91
- CPU Type : 1.4GHz Single Cortex™-A55
- Memory & Storage : 2 GB RAM, 128 GB eMMC
- Ethernet : 2x 10/100/1000 Mbps
- USB : 2x USB 2.0 OTG
SoM
Description
VAR-SOM-MX91은 1.4GHz Cortex™-A55 NXP iMX91 프로세서로 동작하고 energy-flex architecture, IT temperature(?40°C ~ 85°C), dual CAN-FD와 인증된 듀얼밴드 와이파이 02.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.3와 같은 통합 연결 옵션을 제공합니다. 또한, 이 모듈은 VAR-SOM 제품들과 Pin2Pin으로 호환되며, i.MX6UL/6ULL 플랫폼부터 i.MX 8M NANO/MINI/PLUS와 i.MX 93 and AM62x, 최대 i.MX 8X and 8QuadMax 플랫폼에서까지 좋은 성능을 보여줍니다.

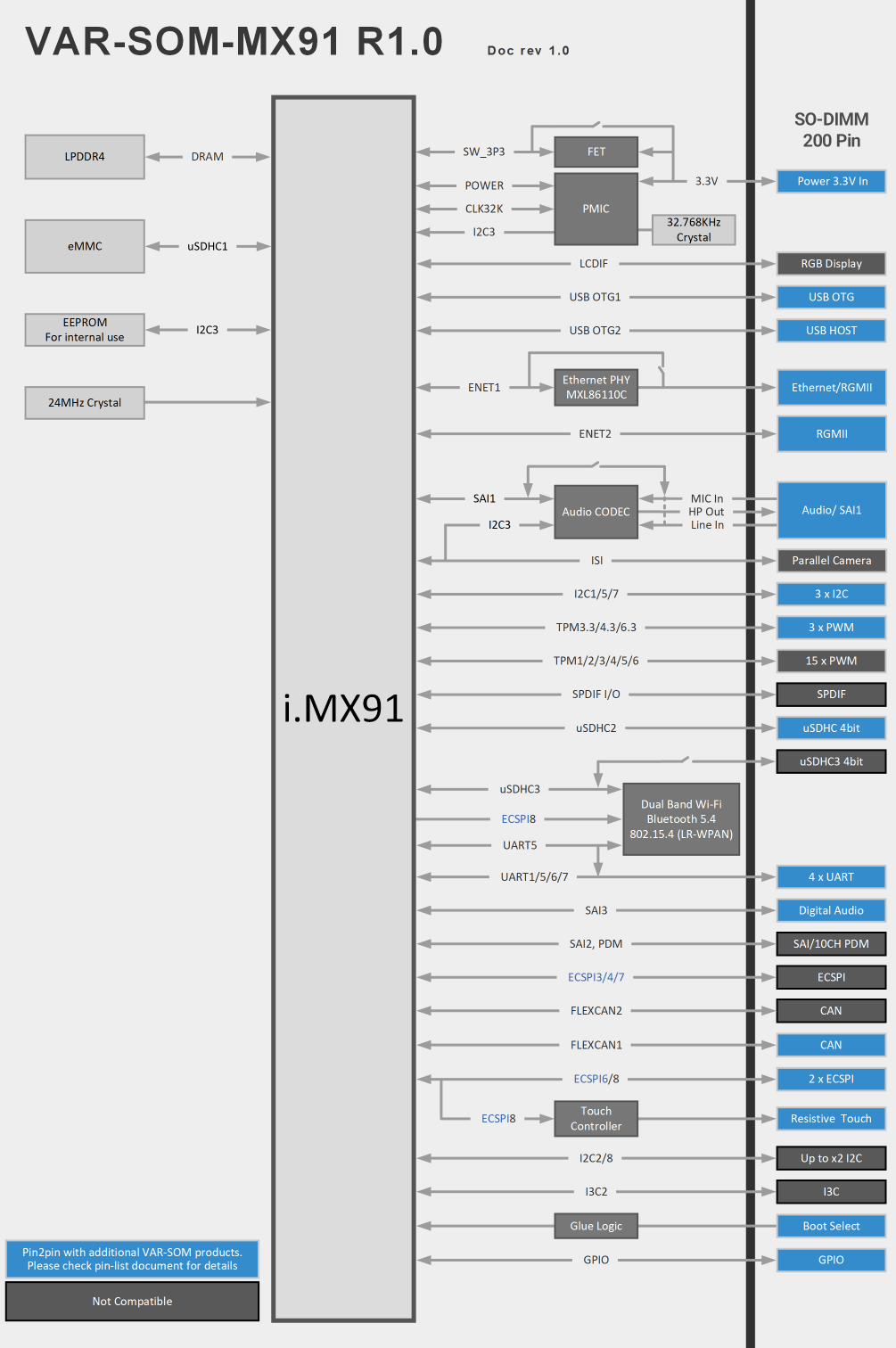

Block Diagram
Ordering Info
| VAR-SOM-MX91S_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WBD/WBE]_[VBT]_[SDEX]_[X]T | |
| MX91S: | Processor type: |
| i.MX 9131 single core fully featured | |
| [xxxx]C: | CPU clock speed: 1400MHz: 1400C |
| [xxxx]R: | LP-DDR4: 512 MB: 512R, 1536 MB: 1536R, 2048 MB: 2048R |
| [xx]G: | eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G |
| [AC]: | Audio Codec |
| [EC]: | GbE PHY (second port always via RGMII) |
| [TP]: | Resistive touch panel controller (note: not available with WBE option) |
| [WBD/WBE] | WBD: |
| Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 | |
| WBE: | |
| Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4 | |
| [VBT] | Default: Standard supply voltage |
| VBT: Higher battery supply voltage | |
| [SDEX] | Default: no additional external SDIO |
| SDEX: additional external SDIO (available only without WBD/WBE) | |
| [x]T: | C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C |
| ex) VAR-SOM-MX91S_1400C_2048R_16G_AC_EC_TP_WBD_ET | |

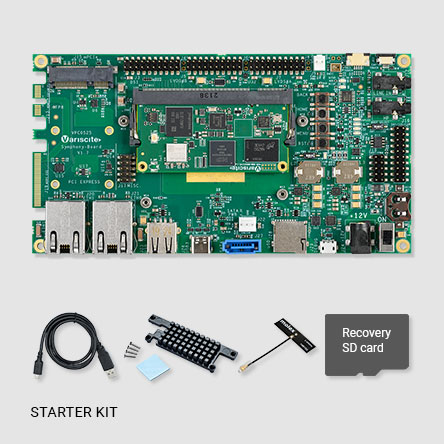

Evaluation Kits
Components
|
|
∙ Debug Cable ∙ Antenna ∙ Boot/Rescue SD Card ∙ Carrier Board Design Package ∙ Heat sink |
Ordering Info
| VAR-STK-VS91_LO | |
| STK | STK: Starter kit |
