DART-MX91
작성자 관리자
날짜 2025-06-10 16:49:00
NXP i.MX91
- CPU Name : NXP i.MX91
- CPU Type : 1.4GHz Single Cortex™-A55
- Memory & Storage : 2 GB RAM, 128 GB eMMC
- Ethernet : 2x 10/100/1000 Mbps
- USB : 2x USB 2.0 OTG
SoM
Description
NXP의 i.MX91 프로세서를 기반으로 한 DART-MX91 SoM은 최대 1.4GHz의 Cortex-A55 CPU를 탑재하고, 듀얼 CAN-FD, 듀얼 GbE, 듀얼 USB, 인증된 Wi-Fi 6 (802.11 ax/ac/a/b/g/n)과 BT/BLE 5.4, 옵션인 802.15.4를 포함한 다양한 고속 통신 인터페이스와 강화된 보안 기능, 산업용 온도(-40°C~85°C) 지원까지 갖춘 전력 효율적이고 신뢰성 높은 초소형(55x30mm) 임베디드 플랫폼입니다.
Block Diagram
Ordering Info
| DART-MX91S_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[WBD/WBE]_[SDEX]_[X]T | |
| MX91S: | Processor type: |
| i.MX 9131 single core fully featured | |
| [xxxx]C: | CPU clock speed: 1400MHz: 1400C |
| [xxxx]R: | LP-DDR4: 512 MB: 512R, 1536 MB: 1536R, 2048 MB: 2048R |
| [xx]G: | eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G |
| [AC]: | Audio Codec |
| [EC]: | GbE PHY (second port always via RGMII) |
| [WBD/WBE] | WBD: |
| Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 | |
| WBE: | |
| Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4 | |
| [SDEX] | Default: no additional external SDIO |
| SDEX: additional external SDIO (available only without WBD/WBE) | |
| [x]T: | C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C |
| ex) DART-MX91S_1400C_2048R_16G_AC_EC_WBD_ET | |

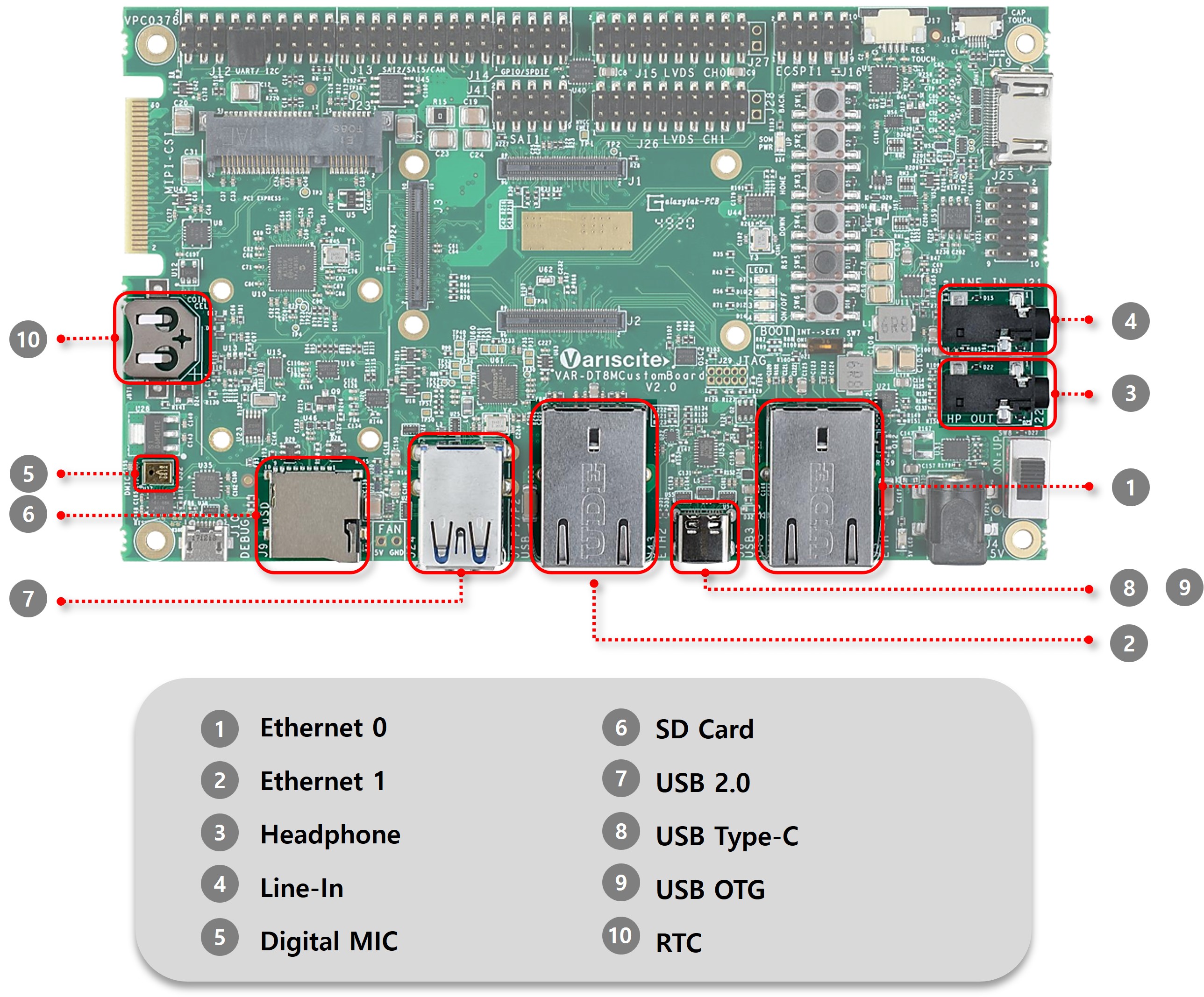

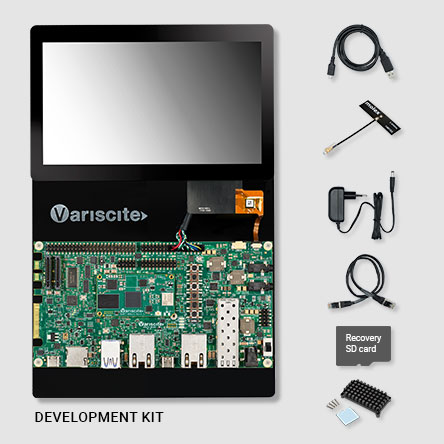

Evaluation Kits
Components
|
|
∙ Debug Cable ∙ Antenna ∙ Boot/Rescue SD Card ∙ Display & Touch Panel ∙ Ethernet Cable ∙ 5V Power Supply ∙ Carrier Board Design Package |
Block Diagram
Ordering Info
| VAR-[STK / DVK]-DT91_LO | |
| STK/DVK | STK: Starter kit |
| DVK: Development kit | |
| ex) VAR-DVK-DT91_LO |
