Variscite i.MX9 Series
VAR-SOM-MX93
작성자 관리자
날짜 2025-06-10 16:50:00
NXP i.MX93
- CPU Name : NXP i.MX93
- CPU Type : 1.7GHz Dual Cortex™-A55
- Real-time CPU : 250Mhz Cortex™-M33
- Memory & Storage : 2 GB RAM, 128 GB eMMC
- Certified WiFi/BT : Wi-Fi 6 802.11 ax/ac/a/b/g/n and BT/BLE 5.4
- Ethernet : 2x 10/100/1000 Mbps
SoM
Description
VAR-SOM-MX93은 1.7GHz Dual Cortex™-A55 NXP iMX93 processor 및 250MHz Cortex-M33 Real-time co-processor로 실행되고, Dual CAN Bus / Dual GbE을 제공하며 IT(Industrial operating Temperatures, -40C~85C)에서도 사용 가능한 모듈 입니다. 그리고 오디오, 카메라, dual-band WiFi 6 (802.11ax/ac/a/b/g/n)과 802.15.4, 블루투스 5.3 및 USB 2채널등 다양한 옵션을 제공하고 있습니다. VAR-SOM 시리즈 제품군과 Pin2Pin으로 호환되어 i.MX6UL/6ULL 플랫폼부터 i.MX 8M NANO/MINI/PLUS 및 i.MX 93, i.MX 8X 및 8QuadMax 고성능 플랫폼까지 범용으로 사용할 수 있는 모듈 입니다.

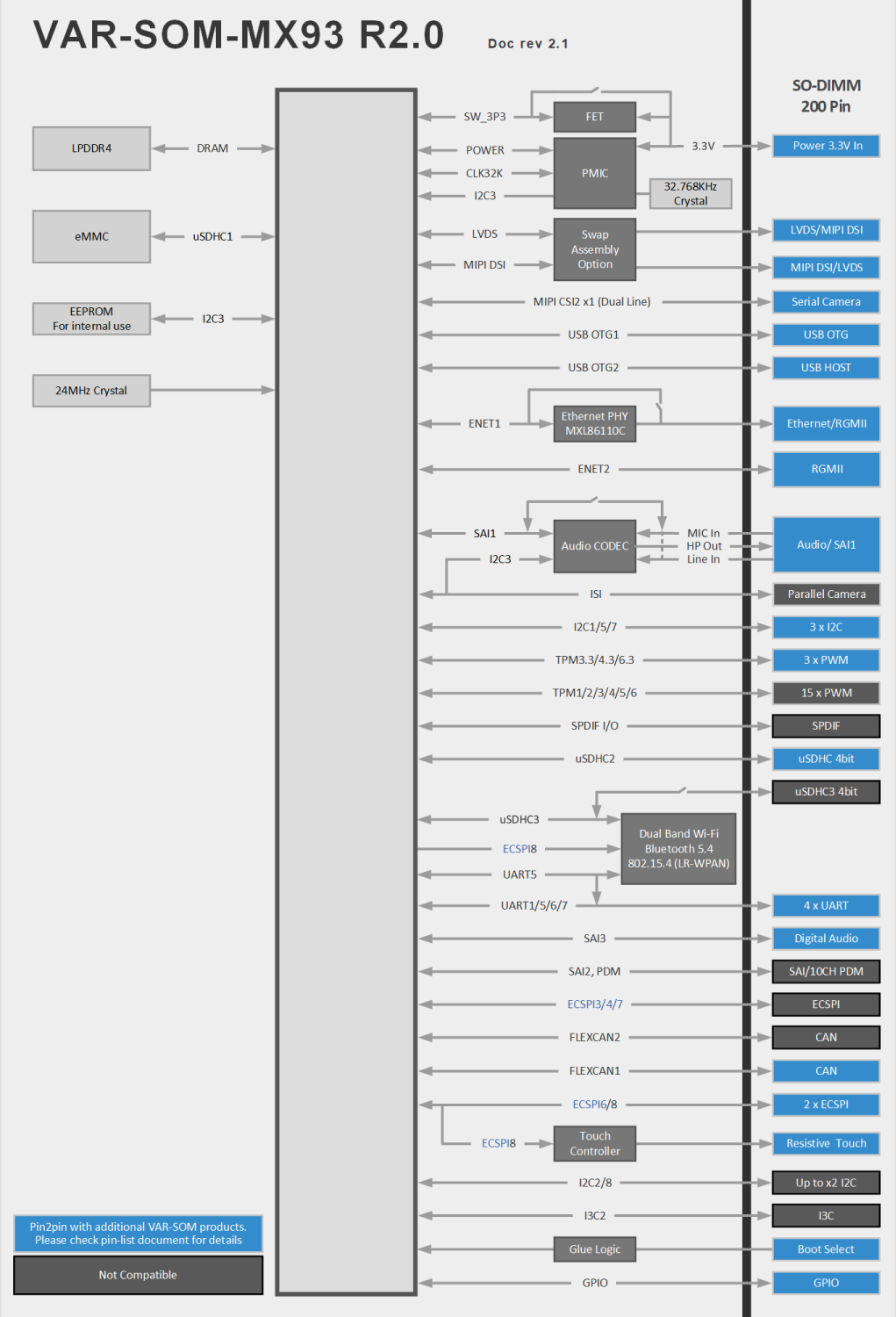

Block Diagram
Ordering Info
| VAR-SOM-MX93[x]_V2_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WBD/WBE]_[DSCM]_[VBT]_[SDEX]_[X]T | |
| MX93[x]: | Processor type: |
| i.MX 9331 single core no NPU: S | |
| i.MX 9352 dual core with NPU: D | |
| [xxxx]C: | CPU clock speed: 1700MHz: 1700C |
| [xxxx]R: | LP-DDR4: 512 MB: 512R, 1536 MB: 1536R, 2048 MB: 2048R |
| [xx]G: | eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G |
| [AC]: | Audio Codec |
| [EC]: | GbE PHY |
| [TP]: | Resistive touch panel controller |
| [WBD/WBE] | WBD: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 |
| WBE: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4 | |
| [SDEX] | Default: no extra SDIO |
| SDEX: extra SDIO port, available only when no WBD/WBE is selected | |
| [DSCM] | Default: LVDS on CH#0, DSI on CH#1 |
| DSCM: LVDS on CH#1, DSI on CH#0 for compatibility with MINI/PLUS | |
| [VBT] | Default: Standard supply voltage |
| VBT: Higher battery supply voltage | |
| [x]T: | C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C |
| ex) VAR-SOM-MX93D_V2_1700C_2048R_16G_AC_EC_TP_WBD_ET | |

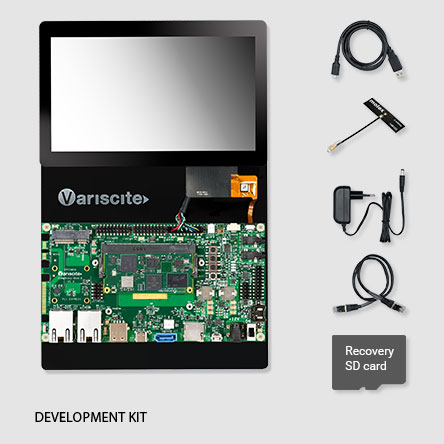

Evaluation Kits
Components
|
|
∙ Debug Cable ∙ Antenna ∙ Boot/Rescue SD Card ∙ Display & Touch Panel ∙ Ethernet Cable ∙ 12V Power Supply ∙ Carrier Board Design Package ∙ Heat sink |

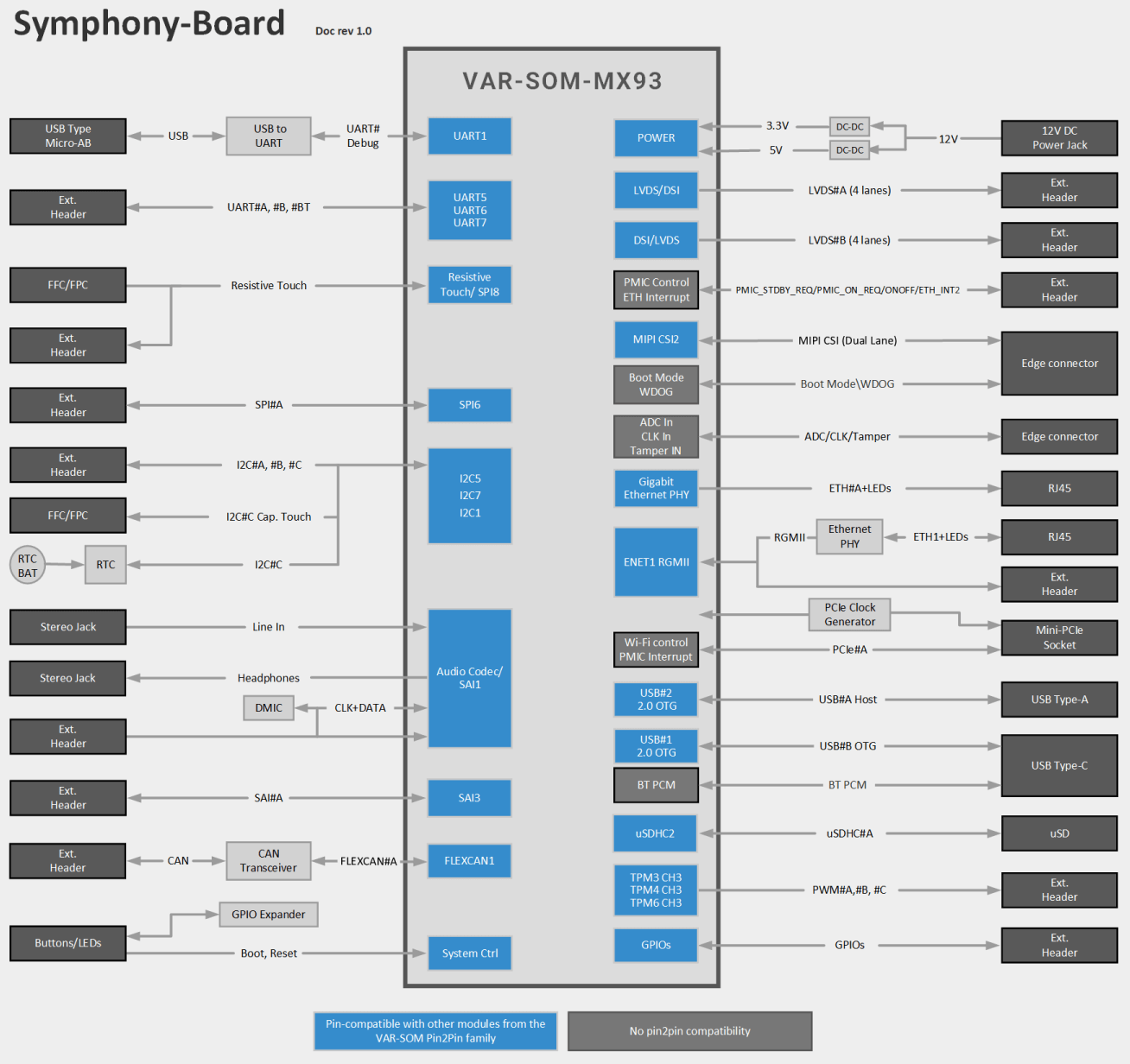

Block Diagram
Ordering Info
| VAR-[STK / DVK]-VS93_LO | |
| STK/DVK | STK: Starter kit |
| DVK: Development kit | |
| ex) VAR-DVK-VS93_LO |
