Variscite i.MX9 Series
DART-MX93
작성자 관리자
날짜 2025-06-10 16:59:49
NXP i.MX93
- CPU Name : NXP i.MX93
- CPU Type : 1.7GHz Dual Cortex™-A55
- Real-time CPU : 250Mhz Cortex™-M33
- Memory & Storage : 2 GB RAM, 128 GB eMMC
- Certified WiFi/BT : Wi-Fi 6 802.11 ax/ac/a/b/g/n and BT/BLE 5.4
- Ethernet : Wi-Fi 6 802.11 ax/ac/a/b/g/n and BT/BLE 5.4
SoM
Description
NXP의 i.MX93 SOM은 최대 1.7GHz Dual Cortex-A55 프로세서와 250MHz Cortex-M33 Real-time-co-processor를 갖추었으며 AI/ML엔진과 energy-flex architecture를 통합하여 전력을 효율적으로 처리하는 SOM 입니다. DART-MX93은 카메라 입력, CAN bus 2채널,GbE 2채널, 오디오 I/O, ADC, USB 2채널, 인증된 Wi-Fi 6 듀얼 밴드 802.11 ax/ac/a/b/g/n와 옵션인 802.15.4 및 BT/BLE 5.3, LVDS 디스플레이 출력 등 다양한 통합 인터페이스를 지원합니다.

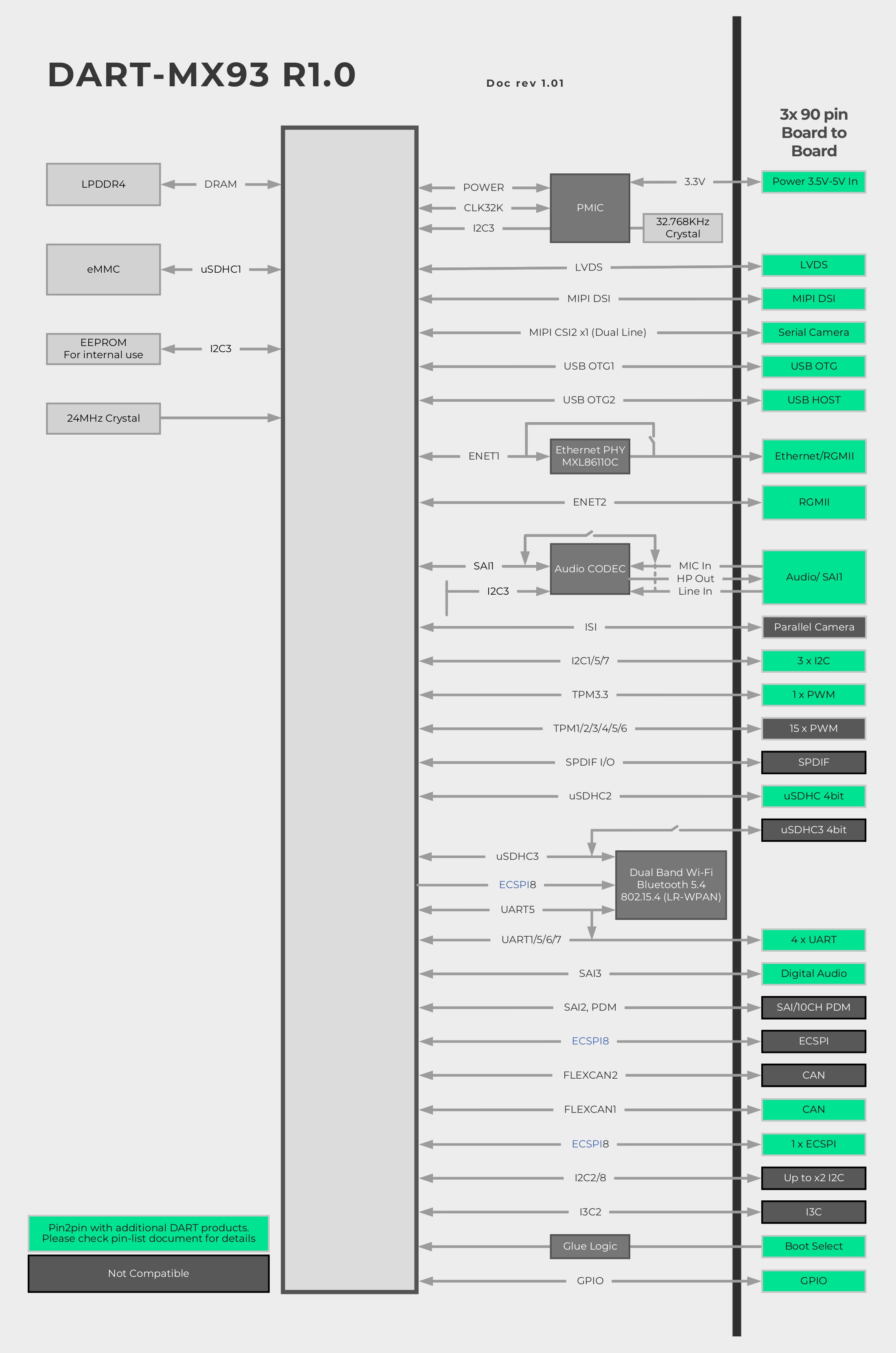

Block Diagram
Ordering Info
| DART-MX93[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[WBD/WBE]_[SDEX]_[X]T | |
| MX93[x]: | Processor type: |
| i.MX 9331 single core no NPU: S | |
| i.MX 9352 dual core with NPU: D | |
| [xxxx]C: | CPU clock speed: 1700MHz: 1700C |
| [xxxx]R: | LP-DDR4: 512 MB: 512R, 1536 MB: 1536R, 2048 MB: 2048R |
| [xx]G: | eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G |
| [AC]: | Audio Codec |
| [EC]: | GbE PHY (second port always via RGMII) |
| [WBD/WBE] | WBD: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 |
| WBE: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4 | |
| [SDEX] | Default: no extra SDIO |
| SDEX: extra SDIO port, available only when no WBD/WBE is selected | |
| [x]T: | C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C |
| ex) DART-MX93D_1700C_2048R_16G_AC_EC_WBD_ET | |

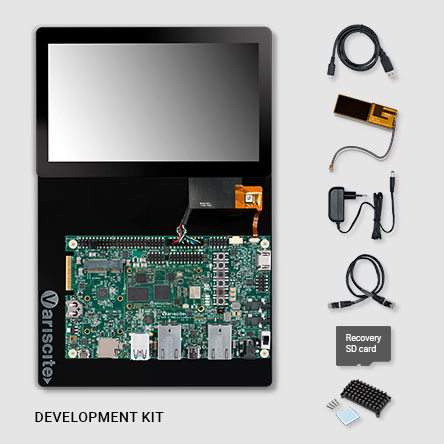

Evaluation Kits

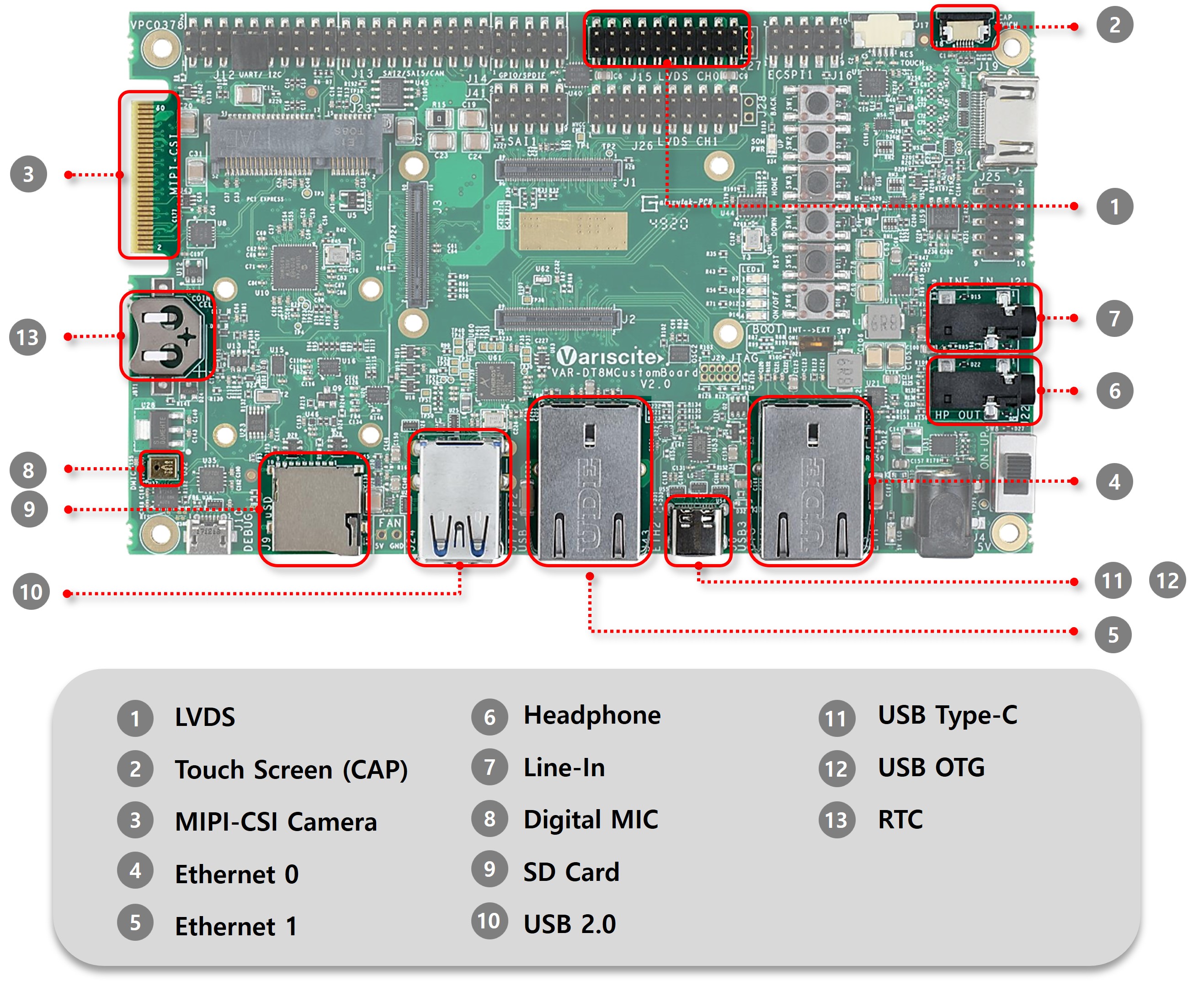

Components
|
|
∙ Debug Cable ∙ Antenna ∙ Boot/Rescue SD Card ∙ Display & Touch Panel ∙ Ethernet Cable ∙ 5V Power Supply ∙ Carrier Board Design Package |

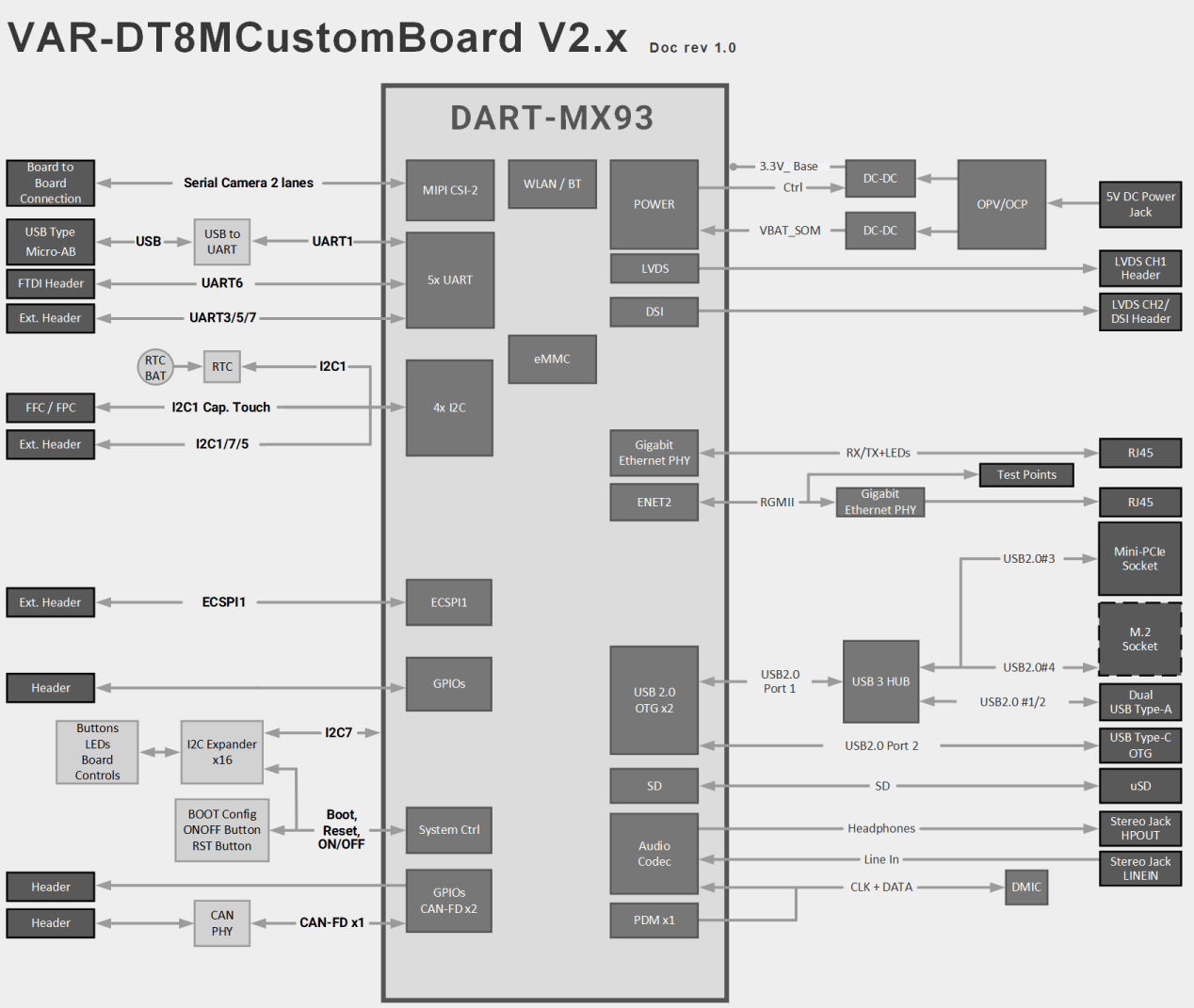

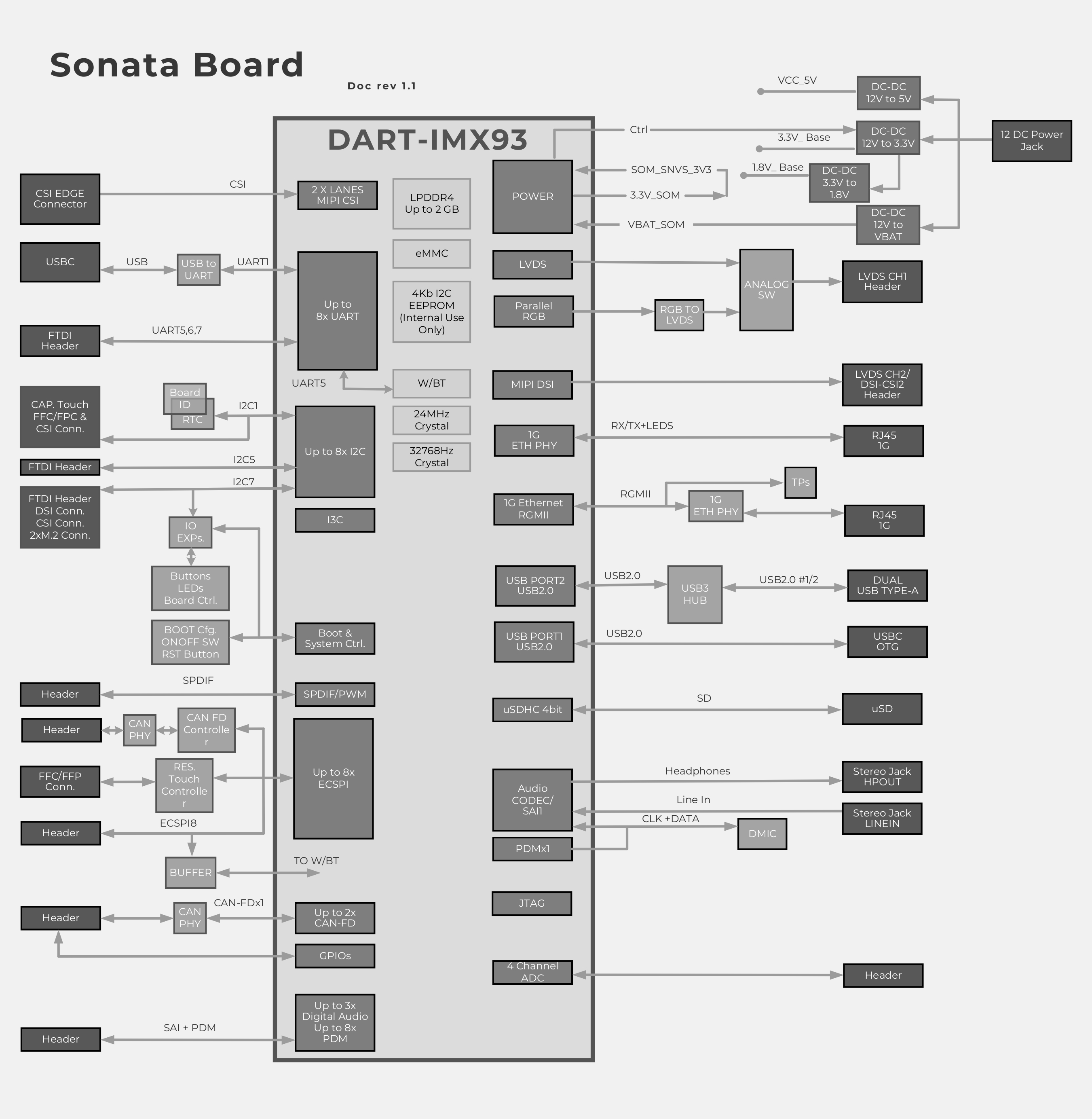

Block Diagram
Ordering Info
| DART-[STK / DVK]-DT93_LO | |
| STK/DVK | STK: Starter kit |
| DVK: Development kit | |
| ex) DART-DVK-DT93_LO |
